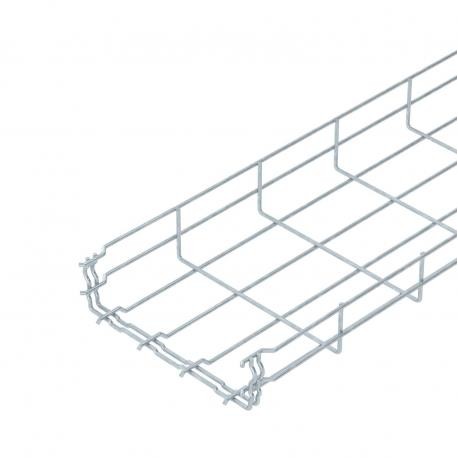

GRM 55 200 FT 6001420 OBO BETTERMANN Mesh cable tray GRM , 55x200x3000, Hot-dip galvanised, DIN EN ISO 1461,..
GRM 55 200 FT
6001420
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Constructed to manage extensive electrical cabling, the Obo Bettermann GRM 55 200 FT mesh cable tray offers dependable support across complex industrial setups. Cable trays facilitate organized routing and structural safety for power and control lines in commercial buildings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,1628 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 55x200x3000
- Dimension B: 200 mm
- Dimension H: 58 mm
- Fire protection: Maintenance of electrical function of cable-specific support structure
- Height: 55 mm
- Height: 2,17 in
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: yes
- Material: Steel
- Profile shape: U-shaped
- Rustproof steel, pickled: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,1628 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 55x200x3000 |
| Dimension B | 200 mm |
| Dimension H | 58 mm |
| Fire protection | Maintenance of electrical function of cable-specific support structure |
| Height | 55 mm |
| Height | 2,17 in |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | yes |
| Material | Steel |
| Profile shape | U-shaped |
| Rustproof steel, pickled | no |
|---|---|
| Screwless connector | yes |
| Support spacing 1.0 m | 0,35 kN/m |
| Support spacing 1.5 m | 0,2 kN/m |
| Support spacing 2.0 m | 0,1 kN/m |
| Support spacing 2.5 m | 0,1 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 8700 mm² |
| Usable cross-section | 87 cm² |
| Wide-span version | no |
| Width | 200 mm |
| Width | 7,87 in |
| Wire diameter | 3,9 mm |
