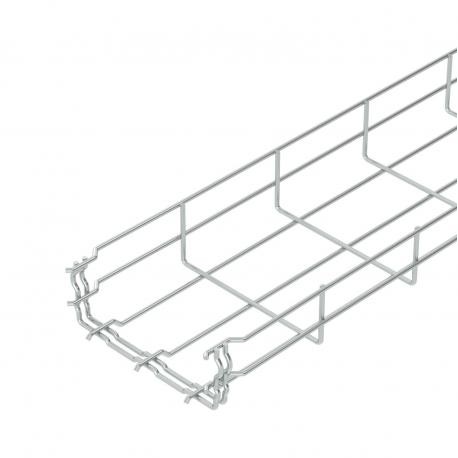

GRM 55 150 G 6001444 OBO BETTERMANN Mesh cable tray GRM , 55x150x3000, Electrogalvanised, DIN 50961, Steel, ..
GRM 55 150 G
6001444
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Ensuring robust mechanical support for electrical cables, this mesh cable tray GRM organizes and protects wiring runs in industrial applications. The Obo Bettermann GRM 55 150 G features an integrated connector system and electrical function maintenance capability for reliable performance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 1,5891 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 55x150x3000
- Dimension B: 150 mm
- Dimension H: 58 mm
- Height: 55 mm
- Height: 2,17 in
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: yes
- Material: Steel
- Profile shape: U-shaped
- Rustproof steel, pickled: no
- Screwless connector: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,5891 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 55x150x3000 |
| Dimension B | 150 mm |
| Dimension H | 58 mm |
| Fire protection | Maintenance of electrical function of cable-specific support structure, Use of fire protection ceilings |
| Height | 55 mm |
| Height | 2,17 in |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | yes |
| Material | Steel |
| Profile shape | U-shaped |
| Rustproof steel, pickled | no |
|---|---|
| Screwless connector | yes |
| Support spacing 1.0 m | 0,35 kN/m |
| Support spacing 1.5 m | 0,2 kN/m |
| Support spacing 2.0 m | 0,1 kN/m |
| Support spacing 2.5 m | 0,1 kN/m |
| Surface | Electrogalvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 6300 mm² |
| Usable cross-section | 63 cm² |
| Wide-span version | no |
| Width | 5,91 in |
| Width | 150 mm |
| Wire diameter | 3,9 mm |
