View larger
Images are for illustrative purposes only. Please refer to data sheet for details

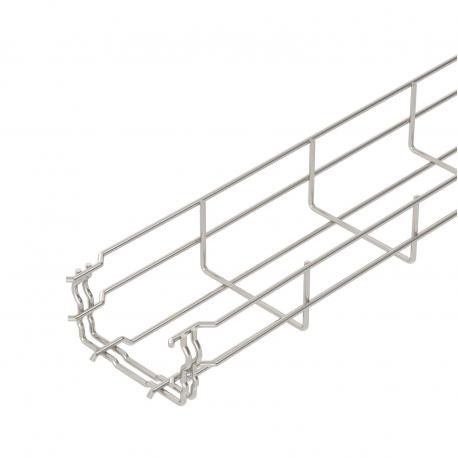

GRM 55 100VA4401 6001088 OBO BETTERMANN Mesh cable tray GRM , 55x100x3000, Stained, Stainless steel, grade 3..
GRM 55 100 A4
6001088
OBO BETTERMANN
3 m.
Mesh cable tray GRM , 55x100x3000, Stained, Stainless steel, grade 316, VA, 1.4401
Mesh cable tray GR-Magic® 55 A4. Mesh cable tray with shaped connector of side height 55 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 3,6441 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 55x100x3000 |
| Dimension B | 100 mm |
| Dimension H | 58 mm |
| Fire protection | Maintenance of electrical function of cable-specific support structure |
| Height | 55 mm |
| Height | 2,17 in |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | yes |
| Material | Stainless steel 1.4401 |
| Profile shape | U-shaped |
| Rustproof steel, pickled | yes |
|---|---|
| Screwless connector | yes |
| Support spacing 1.0 m | 0,35 kN/m |
| Support spacing 1.5 m | 0,2 kN/m |
| Support spacing 2.0 m | 0,1 kN/m |
| Support spacing 2.5 m | 0,1 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 40 cm² |
| Usable cross-section | 4000 mm² |
| Wide-span version | no |
| Width | 100 mm |
| Width | 3,94 in |
| Wire diameter | 3,9 mm |
