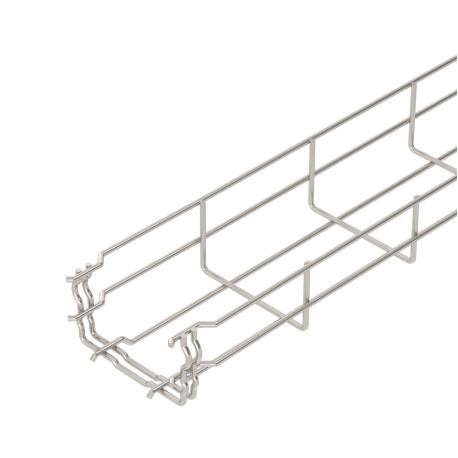

OBO BETTERMANN GRM 55 100 A2 GRM 55 100VA4301 6001072 OBO BETTERMANN Mesh cable tray GRM , 55x100x3000, Stained, Stainless steel, grade 3.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 55 100VA4301 6001072 OBO BETTERMANN Mesh cable tray GRM , 55x100x3000, Stained, Stainless steel, grade 3..

GRM 55 100 A2

6001072

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 55x100x3000, Stained, Stainless steel, grade 304, VA, 1.4301 Mesh cable tray GR-Magic® 55 A2. Mesh cable tray with shaped connector of side height 55 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A stainless steel Obo Bettermann GRM 55 100 A2 mesh cable tray offers reliable organization and physical support for electrical cables in demanding industrial environments. Cable tray systems maintain orderly routing, secure pathway containment, and adequate airflow across commercial and manufacturing facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 3,64 kg CO2e / 1 Meter
  • Colour: stainless steel
  • Connector version: Integrated connector
  • Dimension: 55x100x3000
  • Dimension B: 100 mm
  • Dimension H: 58 mm
  • Fire protection: Maintenance of electrical function of cable-specific support structure
  • Height: 2,17 in
  • Height: 55 mm
  • Integrated partition: Without
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: yes
  • Material: Stainless steel 1.4301
  • Profile shape: U-shaped
  • Rustproof steel, pickled: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate3,64 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension55x100x3000
Dimension B100 mm
Dimension H58 mm
Fire protectionMaintenance of electrical function of cable-specific support structure
Height2,17 in
Height55 mm
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsyes
MaterialStainless steel 1.4301
Profile shapeU-shaped
Rustproof steel, pickledyes
Screwless connectoryes
Support spacing 1.0 m0,35 kN/m
Support spacing 1.5 m0,2 kN/m
Support spacing 2.0 m0,1 kN/m
Support spacing 2.5 m0,1 kN/m
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section4000 mm²
Usable cross-section40 cm²
Width100 mm
Width3,94 in
Wire diameter3,9 mm
