View larger
Images are for illustrative purposes only. Please refer to data sheet for details

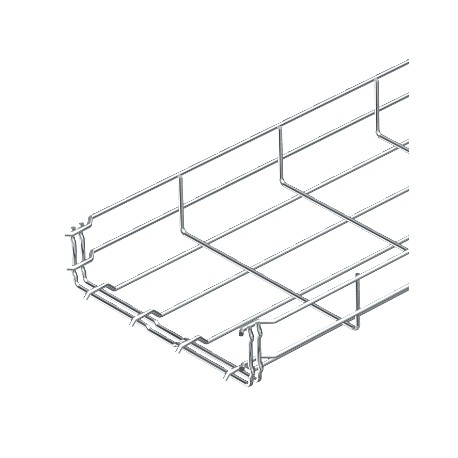

GRM 55 100 G 6001442 OBO BETTERMANN Mesh cable tray GRM , 55x100x3000, Electrogalvanised, DIN 50961, Steel, ..
GRM 55 100 G
6001442
OBO BETTERMANN
3 m.
Mesh cable tray GRM , 55x100x3000, Electrogalvanised, DIN 50961, Steel, St
Mesh cable tray GR-Magic® 55 G. Mesh cable tray with shaped connector of side height 55 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.You can find detailed information regarding the UL classification in the respective certification.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,3562 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 55x100x3000 |
| Dimension B | 100 mm |
| Dimension H | 58 mm |
| Fire protection | Maintenance of electrical function of cable-specific support structure, Use of fire protection ceilings |
| Height | 2,17 in |
| Height | 55 mm |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | yes |
| Material | Steel |
| Profile shape | U-shaped |
| Rustproof steel, pickled | no |
|---|---|
| Screwless connector | yes |
| Support spacing 1.0 m | 0,35 kN/m |
| Support spacing 1.5 m | 0,2 kN/m |
| Support spacing 2.0 m | 0,1 kN/m |
| Support spacing 2.5 m | 0,1 kN/m |
| Surface | Electrogalvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 4000 mm² |
| Usable cross-section | 40 cm² |
| Wide-span version | no |
| Width | 3,94 in |
| Width | 100 mm |
| Wire diameter | 3,9 mm |
