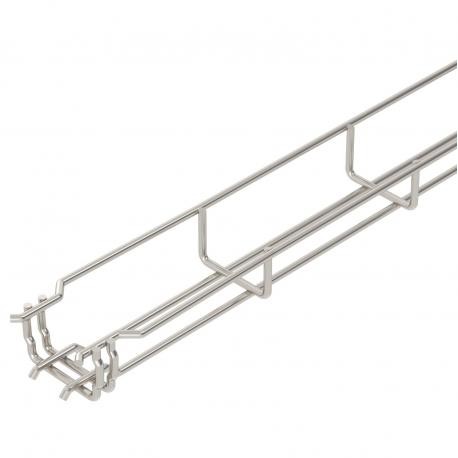

OBO BETTERMANN GRM 35 50 A4 GRM 35 50VA4401 6000086 OBO BETTERMANN GRM mesh tray, 35x50x3000, Stainless steel 1.4401, VA, 1.4401 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 35 50VA4401 6000086 OBO BETTERMANN GRM mesh tray, 35x50x3000, Stainless steel 1.4401, VA, 1.4401

GRM 35 50 A4

6000086

OBO BETTERMANN

3 m.

GRM mesh tray, 35x50x3000, Stainless steel 1.4401, VA, 1.4401 Mesh cable tray GR-Magic® 35 A4. Mesh cable tray with shaped connector of side height 35 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,3129 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension35x50x3000
Dimension B52 mm
Height1,38 in
Height35 mm
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialStainless steel 1.4401
Profile shapeU-shaped
Rustproof steel, pickledyes
Screwless connectoryes
Support spacing 1.0 m0,25 kN/m
Support spacing 1.5 m0,11 kN/m
Support spacing 2.0 m0,1 kN/m
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section1750 mm²
Usable cross-section9,4 cm²
Wide-span versionno
Width50 mm
Width1,97 in
Wire diameter3,9 mm
