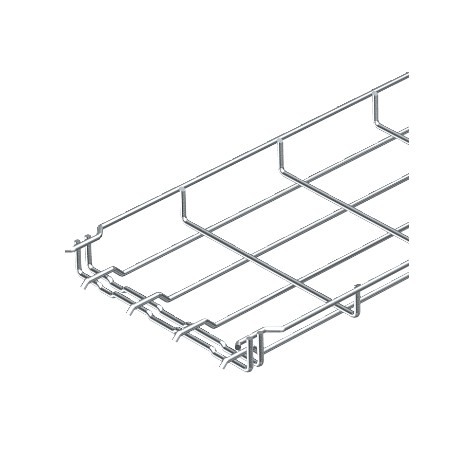

GRM 35 50VA4301 6000054 OBO BETTERMANN Mesh cable tray GRM , 35x50x3000, Stainless steel, grade 304, VA, 1.4..
GRM 35 50 A2
6000054
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A mesh cable tray is utilized across industrial and commercial facilities to route, organize, and protect electrical cables and data wiring along walls, ceilings, and cable racks. This Obo Bettermann model GRM 35 50 A2 provides a durable open-wire framework that ensures proper ventilation and easy access for maintenance while supporting cable runs securely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,3088 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 35x50x3000
- Dimension B: 52 mm
- Height: 1 in
- Height: 35 mm
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Profile shape: U-shaped
- Rustproof steel, pickled: yes
- Screwless connector: yes
- Support spacing 1.0 m: 0,25 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,3088 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 35x50x3000 |
| Dimension B | 52 mm |
| Height | 1 in |
| Height | 35 mm |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Profile shape | U-shaped |
| Rustproof steel, pickled | yes |
|---|---|
| Screwless connector | yes |
| Support spacing 1.0 m | 0,25 kN/m |
| Support spacing 1.5 m | 0,11 kN/m |
| Support spacing 2.0 m | 0,1 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 1750 mm² |
| Usable cross-section | 9,4 cm² |
| Wide-span version | no |
| Width | 50 mm |
| Width | 2 in |
| Wire diameter | 3,9 mm |
