View larger

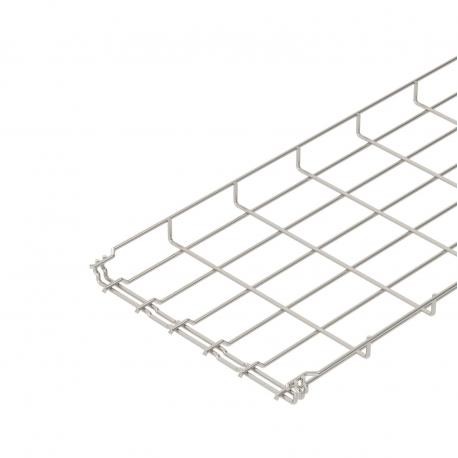

GRM 35 300VA4401 6000091 OBO BETTERMANN Mesh cable tray GRM , 35x300x3000, Stainless steel, grade 316, VA, 1..
GRM 35 300 A4
6000091
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann GRM 35 300 A4 mesh cable tray GRM functions as a dependable structural support for routing and organizing electrical cables in corrosive or sterile environments. Wire mesh pathways allow maximum ventilation around cables, preventing overheating in complex distribution systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 7,9622 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 35x300x3000
- Dimension B: 300 mm
- Height: 35 mm
- Height: 1,38 in
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Stainless steel 1.4401
- Profile shape: U-shaped
- Rustproof steel, pickled: yes
- Screwless connector: yes
- Support spacing 1.0 m: 0,75 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,9622 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 35x300x3000 |
| Dimension B | 300 mm |
| Height | 35 mm |
| Height | 1,38 in |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4401 |
| Profile shape | U-shaped |
| Rustproof steel, pickled | yes |
|---|---|
| Screwless connector | yes |
| Support spacing 1.0 m | 0,75 kN/m |
| Support spacing 1.5 m | 0,22 kN/m |
| Support spacing 2.0 m | 0,15 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 10500 mm² |
| Usable cross-section | 71,3 cm² |
| Wide-span version | no |
| Width | 300 mm |
| Width | 11,81 in |
| Wire diameter | 4,8 mm |
