View larger
Images are for illustrative purposes only. Please refer to data sheet for details

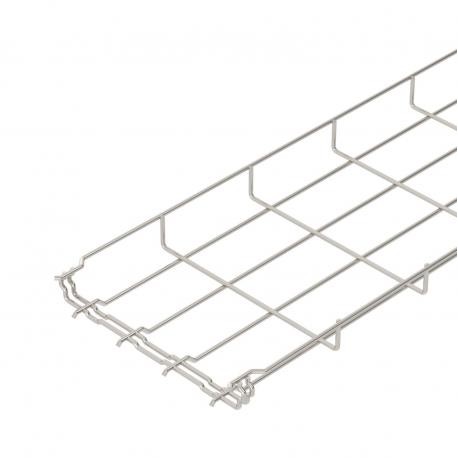

GRM 35 200 A4 6000090 OBO BETTERMANN Mesh cable tray GRM , 35x200x3000, Stainless steel, grade 316, VA, 1.44..
GRM 35 200 A4
6000090
OBO BETTERMANN
3 m.
Mesh cable tray GRM , 35x200x3000, Stainless steel, grade 316, VA, 1.4401
GRM GRM 35 200 A4 grid tray, 35x200x3000 Stainless steel 1.4401, V4A, 1.4401, Polished, with post-treatment
GR-Magic® 35 A4 Grid Tray
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 35/50 = 20 x 100 mm).
| Feature Name | Feature Value |
|---|---|
| Profile shape (EF005179) | U-shape |
| Width (EF000008) | 200 mm |
| Height (EF000040) | 35 mm |
| Length (EF001438) | 3000 mm |
| Diameter longitudinal wire (EF017247) | 3.9 mm |
| Diameter transverse wire (EF017380) | 3.9 mm |
| Useful cross section (EF005140) | 7000 mm² |
| Integrated partition (EF004799) | None |
| Model (EF000010) | Integrated coupler |
| Type of connector (EF000141) | Click in |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 316 (1.4401) |
| Surface protection (EF000139) | Untreated |
| Weight (EF000167) | 0.76 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1 m |
| Safe working load according to IEC 61537 with support spacing 1.0 m (EF017263) | 300 |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 140 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 100 |
