View larger
Images are for illustrative purposes only. Please refer to data sheet for details

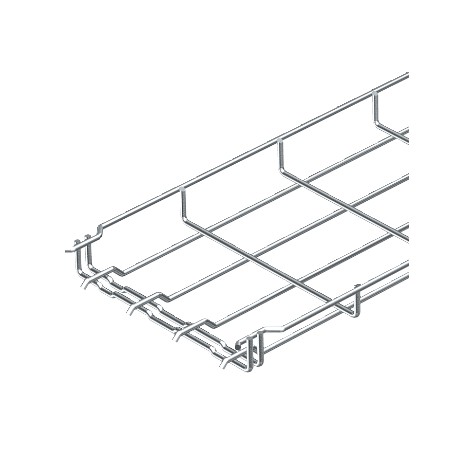

GRM 35 200 G 6000064 OBO BETTERMANN Mesh cable tray GRM , 35x200x3000, Electrogalvanised, DIN 50961, Steel, ..
GRM 35 200 G
6000064
OBO BETTERMANN
3 m.
Mesh cable tray GRM , 35x200x3000, Electrogalvanised, DIN 50961, Steel, St
GRM GRM 35 200 G grid tray, 35x200x3000 Steel, St, electro-galvanized, EN ISO 19598 / EN ISO 4042
GR-Magic® 35 G grid tray. Grid tray with quick wing connection 35 mm. Magnetic insulation without lid 15 dB, with lid 25 dB.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
| Feature Name | Feature Value |
|---|---|
| Profile shape (EF005179) | U-shape |
| Width (EF000008) | 200 mm |
| Height (EF000040) | 35 mm |
| Length (EF001438) | 3000 mm |
| Diameter longitudinal wire (EF017247) | 3.9 mm |
| Diameter transverse wire (EF017380) | 3.9 mm |
| Useful cross section (EF005140) | 7000 mm² |
| Integrated partition (EF004799) | None |
| Model (EF000010) | Integrated coupler |
| Type of connector (EF000141) | Click in |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Weight (EF000167) | 0.77 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1 m |
| Safe working load according to IEC 61537 with support spacing 1.0 m (EF017263) | 300 |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 140 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 100 |
