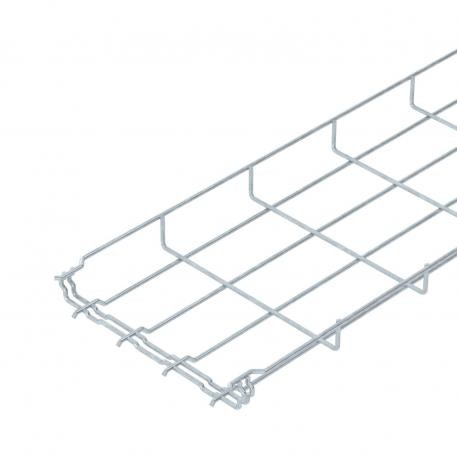

OBO BETTERMANN GRM 35 200 FT GRM 35 200 FT 6000073 OBO BETTERMANN Mesh cable tray GRM , 35x200x3000, Hot-dip galvanised, DIN EN ISO 1461,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 35 200 FT 6000073 OBO BETTERMANN Mesh cable tray GRM , 35x200x3000, Hot-dip galvanised, DIN EN ISO 1461,..

GRM 35 200 FT

6000073

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 35x200x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Grating tray GRM35x200x3000, hot-dip galvanised steel, DIN EN ISO 1461 Mesh cable tray GR-Magic® 35 FT. Mesh cable tray with shaped connector of side height 35 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,6947 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension35x200x3000
Dimension B200 mm
Height35 mm
Height1,38 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Profile shapeU-shaped
Rustproof steel, pickledno
Screwless connectoryes
Support spacing 1.0 m0,3 kN/m
Support spacing 1.5 m0,14 kN/m
Support spacing 2.0 m0,3 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section7000 mm²
Usable cross-section50,1 cm²
Wide-span versionno
Width200 mm
Width7,87 in
Wire diameter3,9 mm
