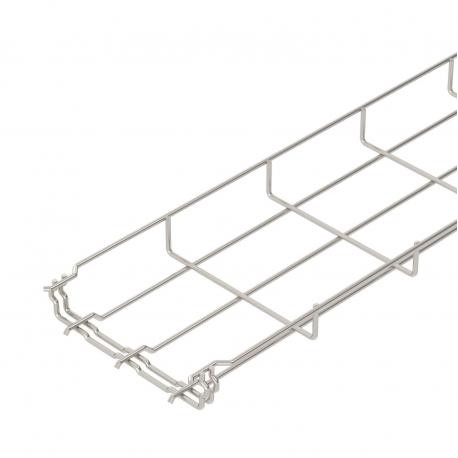

GRM 35 150VA4401 6000089 OBO BETTERMANN Mesh cable tray GRM , 35x150x3000, Stainless steel, grade 316, VA, 1..
GRM 35 150 A4
6000089
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for corrosion resistance, the Obo Bettermann GRM 35 150 A4 mesh cable tray safely directs and organizes electrical cables in harsh operational environments. Wire mesh systems provide continuous airflow to prevent overheating while maintaining organized wiring pathways.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 3,202 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 35x150x3000
- Dimension B: 150 mm
- Height: 1,38 in
- Height: 35 mm
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Stainless steel 1.4401
- Profile shape: U-shaped
- Rustproof steel, pickled: yes
- Screwless connector: yes
- Support spacing 1.0 m: 0,25 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 3,202 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 35x150x3000 |
| Dimension B | 150 mm |
| Height | 1,38 in |
| Height | 35 mm |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4401 |
| Profile shape | U-shaped |
| Rustproof steel, pickled | yes |
|---|---|
| Screwless connector | yes |
| Support spacing 1.0 m | 0,25 kN/m |
| Support spacing 1.5 m | 0,11 kN/m |
| Support spacing 2.0 m | 0,1 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 5250 mm² |
| Usable cross-section | 36,6 cm² |
| Wide-span version | no |
| Width | 150 mm |
| Width | 5,91 in |
| Wire diameter | 3,9 mm |
