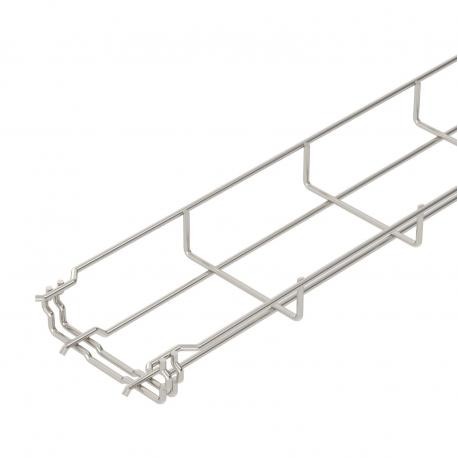

OBO BETTERMANN GRM 35 100 A4 GRM 35 100 A4 6000087 OBO BETTERMANN Mesh cable tray GRM , 35x100x3000, Stainless steel, grade 316, VA, 1.44.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 35 100 A4 6000087 OBO BETTERMANN Mesh cable tray GRM , 35x100x3000, Stainless steel, grade 316, VA, 1.44..

GRM 35 100 A4

6000087

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 35x100x3000, Stainless steel, grade 316, VA, 1.4401 GRM GRM 35 100 A4 grid tray, 35x100x3000 Stainless steel 1.4401, V4A, 1.4401, Polished, with post-treatment GR-Magic® 35 A4 grid tray. Grid tray with quick wing connection 35 mm. Magnetic insulation without lid 15 dB, with lid 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Mesh cable tray GRM provides structured pathways for electrical cabling in facilities requiring efficient organization and continuous physical support for running lines. Designed by Obo Bettermann as part number GRM 35 100 A4, this build handles cable management securely in demanding environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Profile shape: U-shape
  • Width: 100 mm
  • Height: 35 mm
  • Length: 3000 mm
  • Diameter longitudinal wire: 3.9 mm
  • Diameter transverse wire: 3.9 mm
  • Useful cross section: 3500 mm²
  • Model: Integrated coupler
  • Type of connector: Click in
  • Suitable for circuit integrity: No
  • Material: Stainless steel
  • Material quality: Stainless steel 316 (1.4401)
  • Surface protection: Untreated
  • Weight: 0.49 kg/m
  • Load test type according to IEC 61537: Type II
  • Possible support spacing: 1 m

More info

▲
No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 35/50 = 20 x 100 mm).
