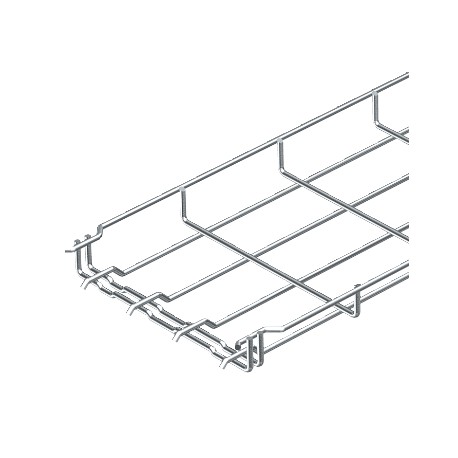

OBO BETTERMANN GRM 35 100 A2 GRM 35 100 A2 6000055 OBO BETTERMANN Mesh cable tray GRM , 35x100x3000, Stainless steel, grade 304, VA, 1.43.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 35 100 A2 6000055 OBO BETTERMANN Mesh cable tray GRM , 35x100x3000, Stainless steel, grade 304, VA, 1.43..

GRM 35 100 A2

6000055

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 35x100x3000, Stainless steel, grade 304, VA, 1.4301 GRM GRM 35 100 A2 Grid Tray, 35x100x3000 Stainless Steel 1.4301, A2, 1.4301, Polished, with Post Treatment Mesh cable tray GR-Magic® 35 A2. Mesh cable tray with shaped connector of side height 35 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Mesh cable tray GRM provides structured pathways for running power and communication lines across industrial facilities and structural installations. This Obo Bettermann GRM 35 100 A2 component utilizes quality stainless steel to withstand corrosive atmospheres. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Profile shape: U-shape
  • Width: 100 mm
  • Height: 35 mm
  • Length: 3000 mm
  • Diameter longitudinal wire: 3.9 mm
  • Diameter transverse wire: 3.9 mm
  • Useful cross section: 3500 mm²
  • Model: Integrated coupler
  • Type of connector: Click in
  • Suitable for circuit integrity: No
  • Material: Stainless steel
  • Material quality: Stainless steel 304 (1.4301)
  • Surface protection: Untreated
  • Weight: 0.49 kg/m
  • Load test type according to IEC 61537: Type II
  • Possible support spacing: 1 m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,5382 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension35x100x3000
Dimension B100 mm
Height35 mm
Height1 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialStainless steel 1.4301
Profile shapeU-shaped
Rustproof steel, pickledyes
Screwless connectoryes
Support spacing 1.0 m0,25 kN/m
Support spacing 1.5 m0,11 kN/m
Support spacing 2.0 m0,1 kN/m
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section3500 mm²
Usable cross-section23 cm²
Wide-span versionno
Width100 mm
Width4 in
Wire diameter3,9 mm
