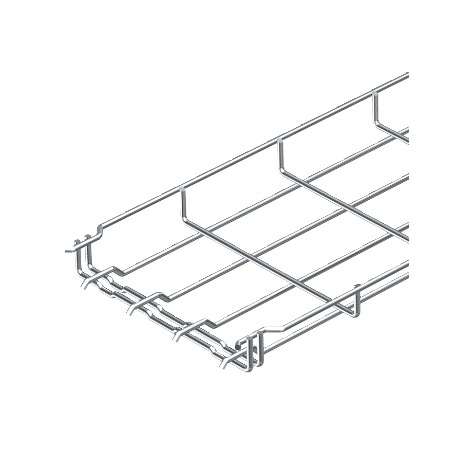

OBO BETTERMANN GRM 35 100 FT GRM 35 100 FT 6000071 OBO BETTERMANN Mesh cable tray GRM , 35x100x3000, Hot-dip galvanised, DIN EN ISO 1461,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 35 100 FT 6000071 OBO BETTERMANN Mesh cable tray GRM , 35x100x3000, Hot-dip galvanised, DIN EN ISO 1461,..

GRM 35 100 FT

6000071

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 35x100x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St GRM GRM 35 100 FT Grid Tray, 35x100x3000 Steel, St, Hot Dip Galvanized, DIN EN ISO 1461 Mesh cable tray GR-Magic® 35 FT. Mesh cable tray with shaped connector of side height 35 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Mesh cable tray GRM acts as a foundational support system for routing cables overhead or along infrastructure runs in industrial facilities. This Obo Bettermann GRM 35 100 FT assembly ensures structured wire management with durable construction suited for standard commercial builds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Profile shape: U-shape
  • Width: 100 mm
  • Height: 35 mm
  • Length: 3000 mm
  • Diameter longitudinal wire: 3.9 mm
  • Diameter transverse wire: 3.9 mm
  • Useful cross section: 3500 mm²
  • Model: Integrated coupler
  • Type of connector: Click in
  • Suitable for circuit integrity: No
  • Material: Steel
  • Surface protection: Hot dip galvanized
  • Weight: 0.5 kg/m
  • Load test type according to IEC 61537: Type II
  • Possible support spacing: 1 m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,1225 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension35x100x3000
Dimension B100 mm
Height35 mm
Height1,38 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Profile shapeU-shaped
Rustproof steel, pickledno
Screwless connectoryes
Support spacing 1.0 m0,25 kN/m
Support spacing 1.5 m0,11 kN/m
Support spacing 2.0 m0,1 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section23 cm²
Usable cross-section3500 mm²
Wide-span versionno
Width100 mm
Width3,94 in
Wire diameter3,9 mm
