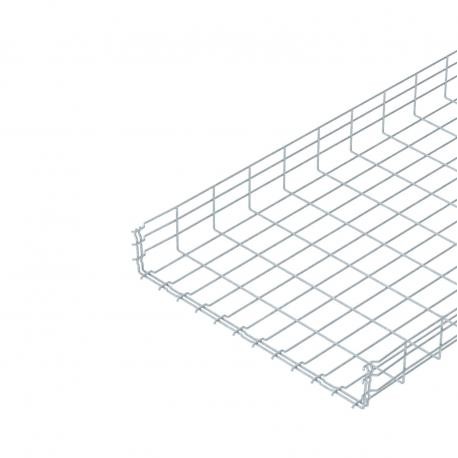

GRM 105 600 FT 6002445 OBO BETTERMANN Mesh cable tray GRM , 105x600x3000, Hot-dip galvanised, DIN EN ISO 146..
GRM 105 600 FT
6002445
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A mesh cable tray provides robust mechanical support for high-density cable networks in large industrial installations. The Obo Bettermann GRM 105 600 FT features a wide U-shaped profile that organizes extensive wiring safely while permitting maximum airflow.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 7,5378 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 105x600x3000
- Dimension B: 600 mm
- Dimension H: 108 mm
- Height: 105 mm
- Height: 4,13 in
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Profile shape: U-shaped
- Rustproof steel, pickled: no
- Screwless connector: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,5378 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 105x600x3000 |
| Dimension B | 600 mm |
| Dimension H | 108 mm |
| Height | 105 mm |
| Height | 4,13 in |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Profile shape | U-shaped |
| Rustproof steel, pickled | no |
| Screwless connector | yes |
|---|---|
| Support spacing 1.0 m | 1,6 kN/m |
| Support spacing 1.5 m | 0,8 kN/m |
| Support spacing 2.0 m | 0,5 kN/m |
| Support spacing 2.5 m | 0,33 kN/m |
| Support spacing 3.0 m | 0,3 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 554 cm² |
| Usable cross-section | 55400 mm² |
| Wide-span version | no |
| Width | 600 mm |
| Width | 23,62 in |
| Wire diameter | 4,8 mm |
