View larger
Images are for illustrative purposes only. Please refer to data sheet for details

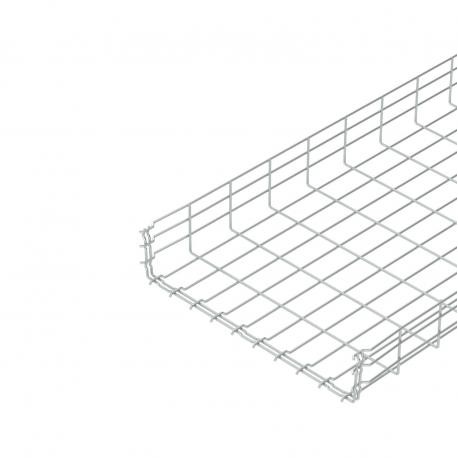

GRM 105 500 G 6002415 OBO BETTERMANN Mesh cable tray GRM , 105x500x3000, Electrogalvanised, DIN 50961, Steel..
GRM 105 500 G
6002415
OBO BETTERMANN
3 m.
Mesh cable tray GRM , 105x500x3000, Electrogalvanised, DIN 50961, Steel, St
GRM GRM 105 500 G grid tray, 105x500x3000 Steel, St, electro-galvanized, EN ISO 19598 / EN ISO 4042
Mesh cable tray GR-Magic® 105 G. Mesh cable tray with shaped connector of side height 105 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 5,8871 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 105x500x3000 |
| Dimension B | 500 mm |
| Dimension H | 108 mm |
| Height | 4,13 in |
| Height | 105 mm |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Profile shape | U-shaped |
| Rustproof steel, pickled | no |
| Screwless connector | yes |
|---|---|
| Support spacing 1.0 m | 1,6 kN/m |
| Support spacing 1.5 m | 0,8 kN/m |
| Support spacing 2.0 m | 0,5 kN/m |
| Support spacing 2.5 m | 0,33 kN/m |
| Support spacing 3.0 m | 0,3 kN/m |
| Surface | Electrogalvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 459 cm² |
| Usable cross-section | 45900 mm² |
| Wide-span version | no |
| Width | 500 mm |
| Width | 19,69 in |
| Wire diameter | 4,8 mm |
| Feature Name | Feature Value |
|---|---|
| Profile shape (EF005179) | U-shape |
| Width (EF000008) | 500 mm |
| Height (EF000040) | 105 mm |
| Length (EF001438) | 3000 mm |
| Diameter longitudinal wire (EF017247) | 4.8 mm |
| Diameter transverse wire (EF017380) | 4.8 mm |
| Useful cross section (EF005140) | 45900 mm² |
| Integrated partition (EF004799) | None |
| Model (EF000010) | Integrated coupler |
| Type of connector (EF000141) | Click in |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Weight (EF000167) | 3.19 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1 m |
| Safe working load according to IEC 61537 with support spacing 1.0 m (EF017263) | 1600 |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 800 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 500 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 330 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 300 |
