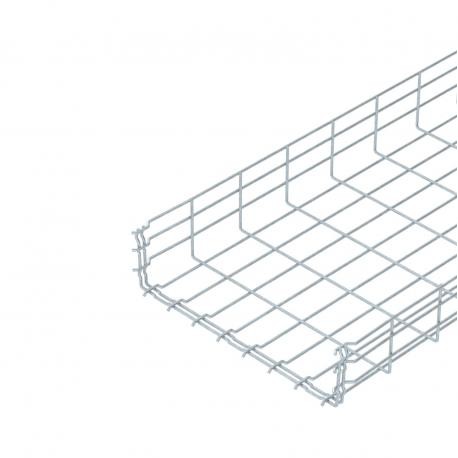

OBO BETTERMANN GRM 105 400 FT GRM 105 400 FT 6002439 OBO BETTERMANN Mesh cable tray GRM , 105x400x3000, Hot-dip galvanised, DIN EN ISO 146.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 105 400 FT 6002439 OBO BETTERMANN Mesh cable tray GRM , 105x400x3000, Hot-dip galvanised, DIN EN ISO 146..

GRM 105 400 FT

6002439

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 105x400x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Mesh cable tray GR-Magic® 105 FT. Mesh cable tray with shaped connector of side height 105 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A mesh cable tray provides an open, ventilated framework for organizing and supporting electrical wiring throughout industrial complexes. This Obo Bettermann GRM 105 400 FT unit combines structural strength with corrosion resistance to ensure long-term reliability in demanding environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 5,8492 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 105x400x3000
  • Dimension B: 400 mm
  • Dimension H: 108 mm
  • Height: 105 mm
  • Height: 4,13 in
  • Integrated partition: Without
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Profile shape: U-shaped
  • Rustproof steel, pickled: no
  • Screwless connector: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate5,8492 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension105x400x3000
Dimension B400 mm
Dimension H108 mm
Height105 mm
Height4,13 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Profile shapeU-shaped
Rustproof steel, pickledno
Screwless connectoryes
Support spacing 1.0 m1,6 kN/m
Support spacing 1.5 m0,8 kN/m
Support spacing 2.0 m0,5 kN/m
Support spacing 2.5 m0,33 kN/m
Support spacing 3.0 m0,3 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section36300 mm²
Usable cross-section363 cm²
Wide-span versionno
Width15,75 in
Width400 mm
Wire diameter4,8 mm
