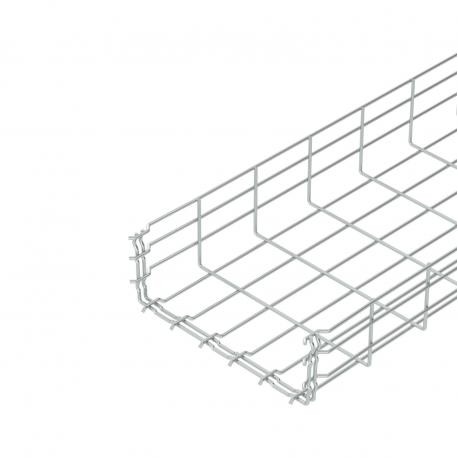

OBO BETTERMANN GRM 105 300 G GRM 105 300 G 6002408 OBO BETTERMANN Mesh cable tray GRM , 105x300x3000, Electrogalvanised, DIN 50961, Steel.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 105 300 G 6002408 OBO BETTERMANN Mesh cable tray GRM , 105x300x3000, Electrogalvanised, DIN 50961, Steel..

GRM 105 300 G

6002408

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 105x300x3000, Electrogalvanised, DIN 50961, Steel, St GRM GRM 105 300 G grid tray, 105x300x3000 Steel, St, electro-galvanized, EN ISO 19598 / EN ISO 4042 Mesh cable tray GR-Magic® 105 G. Mesh cable tray with shaped connector of side height 105 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Mesh cable tray GRM delivers open wire-routing solutions designed to organize and support electrical cables securely along building surfaces. Engineered by Obo Bettermann, the GRM 105 300 G model provides ample cross-section capacity for large cable bundles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Profile shape: U-shape
  • Width: 300 mm
  • Height: 105 mm
  • Length: 3000 mm
  • Diameter longitudinal wire: 4.8 mm
  • Diameter transverse wire: 4.8 mm
  • Useful cross section: 26800 mm²
  • Model: Integrated coupler
  • Type of connector: Click in
  • Suitable for circuit integrity: No
  • Material: Steel
  • Surface protection: Galvanic/electrolytic zinc plated
  • Weight: 2.35 kg/m
  • Load test type according to IEC 61537: Type II
  • Possible support spacing: 1 m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate4,3564 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension105x300x3000
Dimension B300 mm
Dimension H108 mm
Height4,13 in
Height105 mm
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Profile shapeU-shaped
Rustproof steel, pickledno
Screwless connectoryes
Support spacing 1.0 m1,6 kN/m
Support spacing 1.5 m0,8 kN/m
Support spacing 2.0 m0,5 kN/m
Support spacing 2.5 m0,33 kN/m
Support spacing 3.0 m0,3 kN/m
SurfaceElectrogalvanized
Type of connector, cable support systemClick fastening
Usable cross-section268 cm²
Usable cross-section26800 mm²
Wide-span versionno
Width11,81 in
Width300 mm
Wire diameter4,8 mm
