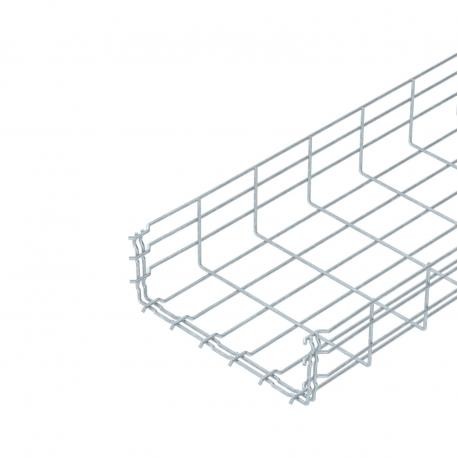

OBO BETTERMANN GRM 105 300 FT GRM 105 300 FT 6002437 OBO BETTERMANN Mesh cable tray GRM , 105x300x3000, Hot-dip galvanised, DIN EN ISO 146.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 105 300 FT 6002437 OBO BETTERMANN Mesh cable tray GRM , 105x300x3000, Hot-dip galvanised, DIN EN ISO 146..

GRM 105 300 FT

6002437

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 105x300x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St GRM GRM 105 300 FT Grid Tray, 105x300x3000 Steel, St,Hot-dipped galvanized, DIN EN ISO 1461 Mesh cable tray GR-Magic® 105 FT. Mesh cable tray with shaped connector of side height 105 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Mesh cable tray GRM provides reliable open-air routing pathways for heavy cabling networks across industrial plants and machinery setups. This Obo Bettermann GRM 105 300 FT tray offers robust structural capacity for demanding cable loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Profile shape: U-shape
  • Width: 300 mm
  • Height: 105 mm
  • Length: 3000 mm
  • Diameter longitudinal wire: 4.8 mm
  • Diameter transverse wire: 4.8 mm
  • Useful cross section: 26800 mm²
  • Model: Integrated coupler
  • Type of connector: Click in
  • Suitable for circuit integrity: No
  • Material: Steel
  • Surface protection: Hot dip galvanized
  • Weight: 2.44 kg/m
  • Load test type according to IEC 61537: Type II
  • Possible support spacing: 1 m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate4,9769 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension105x300x3000
Dimension B300 mm
Dimension H108 mm
Height4,13 in
Height105 mm
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Profile shapeU-shaped
Rustproof steel, pickledno
Screwless connectoryes
Support spacing 1.0 m1,6 kN/m
Support spacing 1.5 m0,8 kN/m
Support spacing 2.0 m0,5 kN/m
Support spacing 2.5 m0,33 kN/m
Support spacing 3.0 m0,3 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section26800 mm²
Usable cross-section268 cm²
Wide-span versionno
Width11,81 in
Width300 mm
Wire diameter4,8 mm
