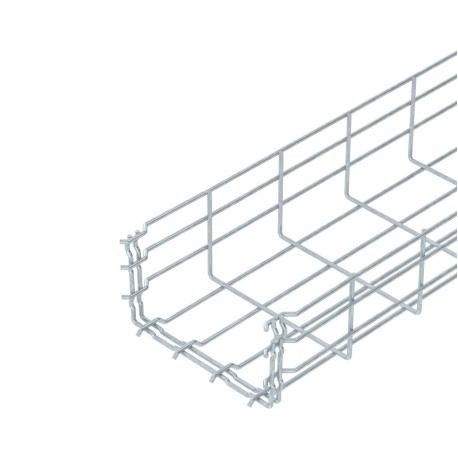

OBO BETTERMANN GRM 105 200 FT GRM 105 200 FT 6002435 OBO BETTERMANN Mesh cable tray GRM , 105x200x3000, Hot-dip galvanised, DIN EN ISO 146.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 105 200 FT 6002435 OBO BETTERMANN Mesh cable tray GRM , 105x200x3000, Hot-dip galvanised, DIN EN ISO 146..

GRM 105 200 FT

6002435

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 105x200x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St GRM GRM 105 200 FT Grid Tray, 105x200x3000 Steel, St, Hot-dip Galvanized, DIN EN ISO 1461 Mesh cable tray GR-Magic® 105 FT. Mesh cable tray with shaped connector of side height 105 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a reliable pathway for electrical conductors, this mesh cable tray GRM manages and supports extensive wiring networks in industrial plants and commercial buildings. The Obo Bettermann GRM 105 200 FT configuration ensures structural integrity for cable routes suspended overhead or mounted along facility corridors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 4,1707 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 105x200x3000
  • Dimension B: 200 mm
  • Dimension H: 108 mm
  • Height: 105 mm
  • Height: 4,13 in
  • Integrated partition: Without
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Profile shape: U-shaped
  • Rustproof steel, pickled: no
  • Screwless connector: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate4,1707 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension105x200x3000
Dimension B200 mm
Dimension H108 mm
Height105 mm
Height4,13 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Profile shapeU-shaped
Rustproof steel, pickledno
Screwless connectoryes
Support spacing 1.0 m1 kN/m
Support spacing 1.5 m0,7 kN/m
Support spacing 2.0 m0,4 kN/m
Support spacing 2.5 m0,25 kN/m
Support spacing 3.0 m0,25 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section175 cm²
Usable cross-section17500 mm²
Wide-span versionno
Width200 mm
Width7,87 in
Wire diameter4,8 mm
