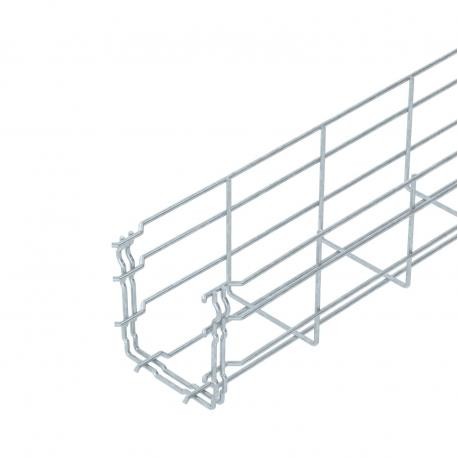

GRM 105 100 FT 6002431 OBO BETTERMANN Mesh cable tray GRM , 105x100x3000, Hot-dip galvanised, DIN EN ISO 146..
GRM 105 100 FT
6002431
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A mesh cable tray offers a lightweight yet rigid pathway for routing electrical conductors throughout commercial and industrial facilities. The Obo Bettermann GRM 105 100 FT provides dependable structural support with an open design for easy maintenance access.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,1665 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 105x100x3000
- Dimension B: 100 mm
- Dimension H: 108 mm
- Height: 105 mm
- Height: 4,13 in
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Profile shape: U-shaped
- Rustproof steel, pickled: no
- Screwless connector: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,1665 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 105x100x3000 |
| Dimension B | 100 mm |
| Dimension H | 108 mm |
| Height | 105 mm |
| Height | 4,13 in |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Profile shape | U-shaped |
| Rustproof steel, pickled | no |
| Screwless connector | yes |
|---|---|
| Support spacing 1.0 m | 0,8 kN/m |
| Support spacing 1.5 m | 0,55 kN/m |
| Support spacing 2.0 m | 0,37 kN/m |
| Support spacing 2.5 m | 0,27 kN/m |
| Support spacing 3.0 m | 0,25 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 8200 mm² |
| Usable cross-section | 82 cm² |
| Wide-span version | no |
| Width | 3,94 in |
| Width | 100 mm |
| Wire diameter | 3,9 mm |
