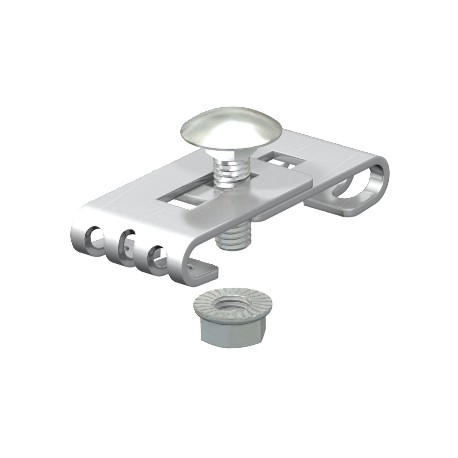

OBO BETTERMANN GEV 36 A4 GEV 36 VA4401 SP 6016764 OBO BETTERMANN Corner connector for mesh cable tray, special, Stainless steel, grad.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GEV 36 VA4401 SP 6016764 OBO BETTERMANN Corner connector for mesh cable tray, special, Stainless steel, grad..

GEV 36 A4

6016764

OBO BETTERMANN

10 Pcs.

Corner connector for mesh cable tray, special, Stainless steel, grade 316, VA, 1.4401 Corner connector A4. Corner connector for the creation of mesh cable tray bend elements.

Cables > Connector for cable support system
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann GEV 36 A4 corner connector is engineered for joining mesh cable tray wire grids securely at directional angles. Mesh wire connectors preserve structural continuity around corners in complex routing networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1819 kg CO2e / 1 Piece
  • Colour: stainless steel
  • Connection type: Screw connector
  • Dimension: 42-54 x 23
  • Height: 0,63 in
  • Height: 16 mm
  • Length: 56 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4401
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: no
  • Suitable for cable tray: no
  • Suitable for mesh cable tray: yes
  • Suitable for mesh cable tray wire, max.: 4,9 mm
  • Suitable for mesh cable tray wire, min.: 3,9 mm
  • Surface: Bright, treated

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,1819 kg CO2e / 1 Piece
Colourstainless steel
Connection typeScrew connector
Dimension42-54 x 23
Height0,63 in
Height16 mm
Length56 mm
Maintain electrical functionsno
MaterialStainless steel 1.4401
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayno
Suitable for mesh cable trayyes
Suitable for mesh cable tray wire, max.4,9 mm
Suitable for mesh cable tray wire, min.3,9 mm
SurfaceBright, treated
Version forCorner connector
Width0,91 in
Width23 mm
