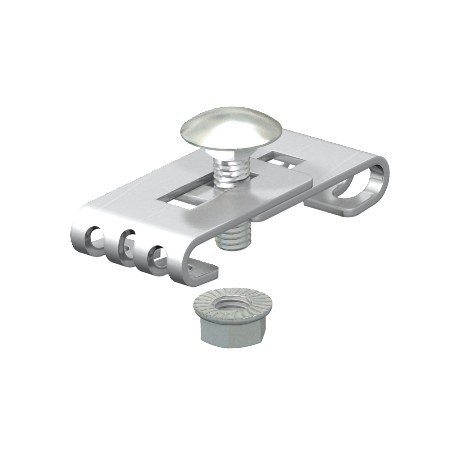

GEV 36 A2 6016731 OBO BETTERMANN Corner connector for mesh cable tray, Stainless steel, grade 304, VA, 1.4301
GEV 36 A2
6016731
OBO BETTERMANN
20 Pcs.
Corner connector for mesh cable tray, Stainless steel, grade 304, VA, 1.4301
GEV 36 A2 angular connector, for grid tray Stainless steel 1.4301, A2, 1.4301, Polished, with subsequent treatment
Corner connector A2. Corner connector for the creation of mesh cable tray bend elements.
Cables > Connector for cable support system
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann GEV 36 A2 is a corner connector specifically manufactured to join wire mesh cable trays at angles. Installers rely on these specialized corner fittings to configure precise routing layouts in corrosive settings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Corner connector
- Type of connection (EF000064): Screw connector
- Suitable for wire mesh tray (EF005163): Yes
- Suitable for cable ladder (EF005165): No
- Suitable for cable tray (EF005166): No
- Suitable for wire mesh tray filament (EF005164): 3.9 mm
- Length (EF001438): 56 mm
- Suitable for circuit integrity (EF007806): No
- Material (EF002169): Stainless steel
- Stainless steel, pickled (EF006388): No
- Material quality (EF001257): Rustproof and acidproof steel
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,1821 kg CO2e / 1 Piece |
|---|---|
| Colour | stainless steel |
| Connection type | Screw connector |
| Dimension | 42-54 x 23 |
| Height | 0,63 in |
| Height | 16 mm |
| Length | 56 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
|---|---|
| Suitable for cable tray | no |
| Suitable for mesh cable tray | yes |
| Suitable for mesh cable tray wire, max. | 4,9 mm |
| Suitable for mesh cable tray wire, min. | 3,9 mm |
| Surface | Bright, treated |
| Version for | Corner connector |
| Width | 23 mm |
| Width | 0,91 in |
