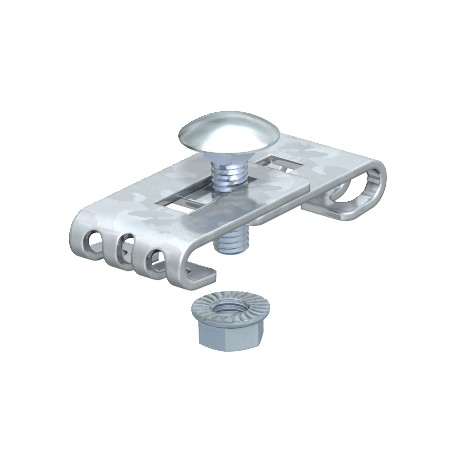

OBO BETTERMANN GEV 36 G GEV 36 G 6016715 OBO BETTERMANN Corner connector for mesh cable tray, Electrogalvanised, DIN 50961, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GEV 36 G 6016715 OBO BETTERMANN Corner connector for mesh cable tray, Electrogalvanised, DIN 50961, Steel, St

GEV 36 G

6016715

OBO BETTERMANN

20 Pcs.

Corner connector for mesh cable tray, Electrogalvanised, DIN 50961, Steel, St Corner connector G. Corner connector for the creation of mesh cable tray bend elements.

Cables > Connector for cable support system
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A corner connector for mesh cable tray, part number GEV 36 G from Obo Bettermann, secures angular junctions and wire intersections in mesh basket tray layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0733 kg CO2e / 1 Piece
  • Colour: zinc
  • Connection type: Screw connector
  • Dimension: 42-54 x 23
  • Height: 0,63 in
  • Height: 16 mm
  • Length: 56 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: no
  • Suitable for cable tray: no
  • Suitable for mesh cable tray: yes
  • Suitable for mesh cable tray wire, max.: 4,9 mm
  • Suitable for mesh cable tray wire, min.: 3,9 mm
  • Surface: Electrogalvanized

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0733 kg CO2e / 1 Piece
Colourzinc
Connection typeScrew connector
Dimension42-54 x 23
Height0,63 in
Height16 mm
Length56 mm
Maintain electrical functionsno
MaterialSteel
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayno
Suitable for mesh cable trayyes
Suitable for mesh cable tray wire, max.4,9 mm
Suitable for mesh cable tray wire, min.3,9 mm
SurfaceElectrogalvanized
Version forCorner connector
Width23 mm
Width0,91 in

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
