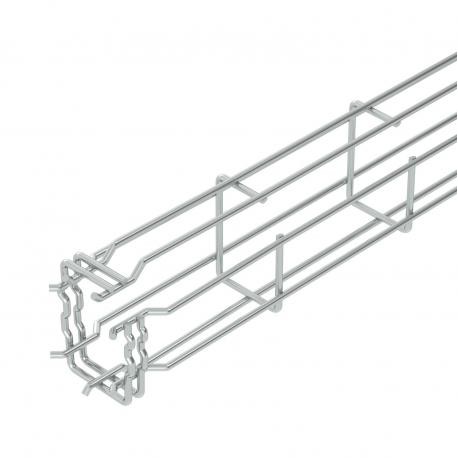

OBO BETTERMANN G-GRM 75 50 G G-GRM 75 50 G 6005538 OBO BETTERMANN G mesh cable tray Magic , 75x50x3000, Electrogalvanised, DIN 50961, Ste.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G-GRM 75 50 G 6005538 OBO BETTERMANN G mesh cable tray Magic , 75x50x3000, Electrogalvanised, DIN 50961, Ste..

G-GRM 75 50 G

6005538

OBO BETTERMANN

3 m.

G mesh cable tray Magic , 75x50x3000, Electrogalvanised, DIN 50961, Steel, St G mesh cable tray Magic® 75 G. G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths. Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.Magnetic shield insulation 15 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An electrogalvanized Obo Bettermann G-GRM 75 50 G mesh cable tray delivers targeted support and secure organization for specialized cable runs. G-profile trays optimize installation layouts where space constraints require efficient wire management. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,5059 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 75x50x3000
  • Dimension A: 53 mm
  • Dimension B: 53 mm
  • Dimension C: 38 mm
  • Dimension H: 73 mm
  • Height: 75 mm
  • Height: 2,95 in
  • Integrated partition: Without
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: yes
  • Material: Steel
  • Profile shape: G-shaped

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,5059 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension75x50x3000
Dimension A53 mm
Dimension B53 mm
Dimension C38 mm
Dimension H73 mm
Height75 mm
Height2,95 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsyes
MaterialSteel
Profile shapeG-shaped
Rustproof steel, pickledno
Screwless connectoryes
SurfaceElectrogalvanized
Type of connector, cable support systemClick fastening
Usable cross-section22 cm²
Usable cross-section2200 mm²
Wide-span versionno
Width1,97 in
Width50 mm
Wire diameter3,9 mm
