OBO BETTERMANN G-GRM 50 50 A4 G-GRM 50 50V4A 6005565 OBO BETTERMANN G mesh cable tray Magic , 50x50x3000, Stainless steel, grade 316, VA, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G-GRM 50 50V4A 6005565 OBO BETTERMANN G mesh cable tray Magic , 50x50x3000, Stainless steel, grade 316, VA, ..

G-GRM 50 50 A4

6005565

OBO BETTERMANN

3 m.

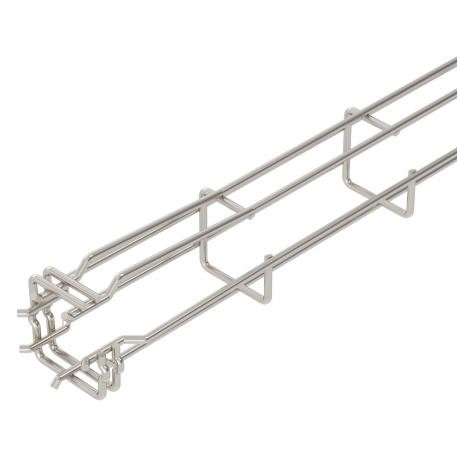

G mesh cable tray Magic , 50x50x3000, Stainless steel, grade 316, VA, 1.4401 G mesh cable tray Magic® 50 A4. G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths. Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.Magnetic shield insulation 15 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing specialized cable support, the Obo Bettermann G-GRM 50 50 A4 G mesh cable tray secures wire runs in challenging industrial spaces. G-shaped profiles direct and organize cable bundles efficiently along walls and support frames. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 3,4244 kg CO2e / 1 Meter
  • Colour: stainless steel
  • Connector version: Integrated connector
  • Dimension: 50x50x3000
  • Dimension A: 38 mm
  • Dimension B: 55 mm
  • Dimension C: 33 mm
  • Dimension H: 55 mm
  • Height: 50 mm
  • Height: 1,97 in
  • Integrated partition: Without
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4401
  • Profile shape: G-shaped

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate3,4244 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension50x50x3000
Dimension A38 mm
Dimension B55 mm
Dimension C33 mm
Dimension H55 mm
Height50 mm
Height1,97 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialStainless steel 1.4401
Profile shapeG-shaped
Rustproof steel, pickledyes
Screwless connectoryes
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section1700 mm²
Usable cross-section17 cm²
Wide-span versionno
Width50 mm
Width1,97 in
Wire diameter3,9 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
