View larger
Images are for illustrative purposes only. Please refer to data sheet for details

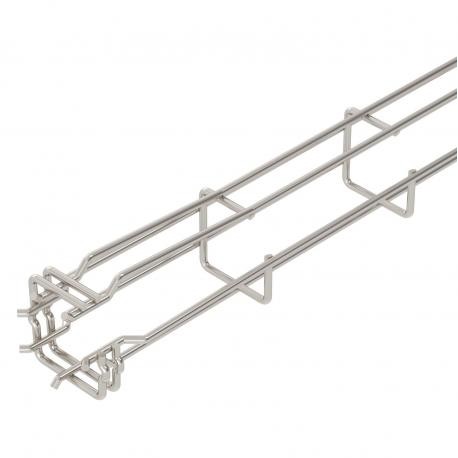

G-GRM 50 50V2A 6005550 OBO BETTERMANN G mesh cable tray Magic , 50x50x3000, Stainless steel, grade 304, VA, ..
G-GRM 50 50 A2
6005550
OBO BETTERMANN
3 m.
G mesh cable tray Magic , 50x50x3000, Stainless steel, grade 304, VA, 1.4301
G mesh cable tray Magic® 50 A2. G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths. Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.Magnetic shield insulation 15 dB.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 3,4137 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 50x50x3000 |
| Dimension A | 38 mm |
| Dimension B | 55 mm |
| Dimension C | 33 mm |
| Dimension H | 55 mm |
| Height | 50 mm |
| Height | 1,97 in |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
|---|---|
| Material | Stainless steel 1.4301 |
| Profile shape | G-shaped |
| Rustproof steel, pickled | yes |
| Screwless connector | yes |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 1700 mm² |
| Usable cross-section | 17 cm² |
| Wide-span version | no |
| Width | 1,97 in |
| Width | 50 mm |
| Wire diameter | 3,9 mm |
