View larger
Images are for illustrative purposes only. Please refer to data sheet for details

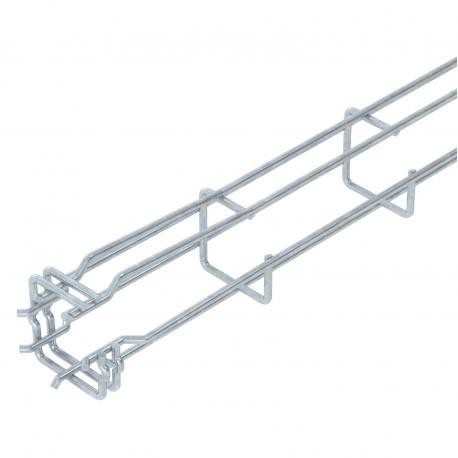

G-GRM 50 50 FT 6005520 OBO BETTERMANN G mesh cable tray Magic , 50x50x3000, Hot-dip galvanised, DIN EN ISO 1..
G-GRM 50 50 FT
6005520
OBO BETTERMANN
3 m.
G mesh cable tray Magic , 50x50x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
G mesh cable tray Magic® 50 FT. G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths. Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.Magnetic shield insulation 15 dB.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,4885 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 50x50x3000 |
| Dimension A | 38 mm |
| Dimension B | 55 mm |
| Dimension C | 33 mm |
| Dimension H | 55 mm |
| Height | 50 mm |
| Height | 1,97 in |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
|---|---|
| Material | Steel |
| Profile shape | G-shaped |
| Rustproof steel, pickled | no |
| Screwless connector | yes |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 1700 mm² |
| Usable cross-section | 17 cm² |
| Wide-span version | no |
| Width | 50 mm |
| Width | 1,97 in |
| Wire diameter | 3,9 mm |
