View larger
Images are for illustrative purposes only. Please refer to data sheet for details

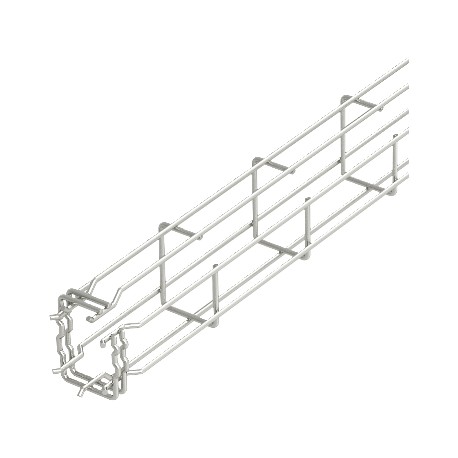

G-GRM 150 100V4A 6005574 OBO BETTERMANN G mesh cable tray Magic , 150x100x3000, Stainless steel, grade 316, ..
G-GRM 150 100V4A
6005574
OBO BETTERMANN
3 Pcs.
G mesh cable tray Magic , 150x100x3000, Stainless steel, grade 316, VA, 1.4401
G mesh cable tray Magic® 150 A4. G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths. Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.Magnetic shield insulation 15 dB.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 6,3739 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 150x100x3000 |
| Dimension A | 120 mm |
| Dimension B | 100 mm |
| Dimension C | 68 mm |
| Dimension H | 155 mm |
| Height | 5,91 in |
| Height | 150 mm |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4401 |
| Profile shape | G-shaped |
|---|---|
| Rustproof steel, pickled | yes |
| Screwless connector | yes |
| Support spacing 1.0 m | 0,6 kN/m |
| Support spacing 1.5 m | 0,5 kN/m |
| Support spacing 2.0 m | 0,35 kN/m |
| Support spacing 2.5 m | 0,3 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 107 cm² |
| Usable cross-section | 10700 mm² |
| Wide-span version | no |
| Width | 100 mm |
| Width | 3,94 in |
| Wire diameter | 3,9 mm |
