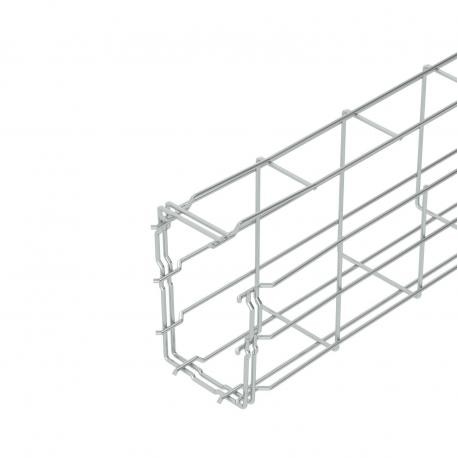

G-GRM 150 100 FT 6005529 OBO BETTERMANN G mesh cable tray Magic , 150x100x3000, Hot-dip galvanised, DIN EN I..
G-GRM 150 100 FT
6005529
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A G mesh cable tray is engineered to support specialized cable runs, offering a unique profile that optimizes space utilization along walls and machinery. This Obo Bettermann G-GRM 150 100 FT ensures durable performance and secure cable retention.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,7376 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 150x100x3000
- Dimension A: 120 mm
- Dimension B: 100 mm
- Dimension C: 68 mm
- Dimension H: 155 mm
- Height: 5,91 in
- Height: 150 mm
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: yes
- Material: Steel
- Profile shape: G-shaped
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,7376 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 150x100x3000 |
| Dimension A | 120 mm |
| Dimension B | 100 mm |
| Dimension C | 68 mm |
| Dimension H | 155 mm |
| Height | 5,91 in |
| Height | 150 mm |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | yes |
| Material | Steel |
| Profile shape | G-shaped |
|---|---|
| Rustproof steel, pickled | no |
| Screwless connector | yes |
| Support spacing 1.0 m | 0,6 kN/m |
| Support spacing 1.5 m | 0,5 kN/m |
| Support spacing 2.0 m | 0,35 kN/m |
| Support spacing 2.5 m | 0,3 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 107 cm² |
| Usable cross-section | 10700 mm² |
| Wide-span version | no |
| Width | 3,94 in |
| Width | 100 mm |
| Wire diameter | 3,9 mm |
