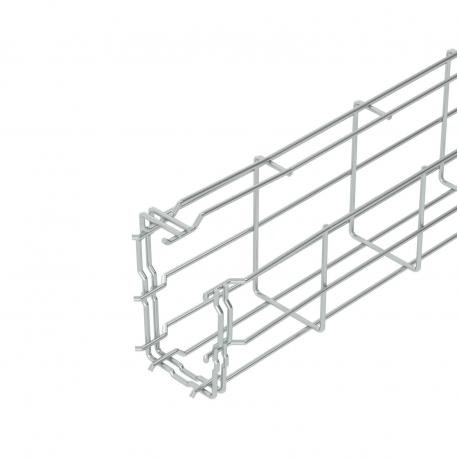

OBO BETTERMANN G-GRM 125 75 G G-GRM 125 75 G 6005541 OBO BETTERMANN G mesh cable tray Magic , 125x75x3000, Electrogalvanised, DIN 50961, S.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G-GRM 125 75 G 6005541 OBO BETTERMANN G mesh cable tray Magic , 125x75x3000, Electrogalvanised, DIN 50961, S..

G-GRM 125 75 G

6005541

OBO BETTERMANN

3 m.

G mesh cable tray Magic , 125x75x3000, Electrogalvanised, DIN 50961, Steel, St G-GRM G-GRM 125 75 G grid tray, 125x75x3000 Steel, St, electro-galvanized, EN ISO 19598 / EN ISO 4042 G-mesh gutter Magic® 125 g

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann G mesh cable tray Magic (G-GRM 125 75 G 6005541) is a specialized open-wire pathway used to safely route, support, and organize power and data cables in industrial and commercial installations. Cable trays are standard infrastructure components designed to maintain proper separation and bend radiuses for wiring systems while ensuring accessibility for maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Profile shape (EF005179): G-shape
  • Width (EF000008): 75 mm
  • Height (EF000040): 125 mm
  • Length (EF001438): 3000 mm
  • Diameter longitudinal wire (EF017247): 3.9 mm
  • Diameter transverse wire (EF017380): 3.9 mm
  • Useful cross section (EF005140): 6100 mm²
  • Model (EF000010): Integrated coupler
  • Type of connector (EF000141): Click in
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Galvanic/electrolytic zinc plated
  • Weight (EF000167): 1.08 kg/m
  • Load test type according to IEC 61537 (EF015362): Type II
  • Possible support spacing (EF017261): 1 m

More info

▲
Magnetic shield insulation 15 dB.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
