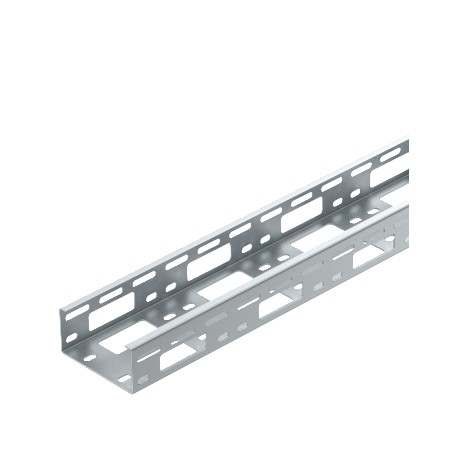

AZK 100 FT 6075258 OBO BETTERMANN AZ small duct perforated, 50x100x3000, Hot-dip galvanised, DIN EN ISO 1461..
AZK 100 FT
6075258
OBO BETTERMANN
3 m.
AZ small duct perforated, 50x100x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
AZ small duct 100 FT. AZ channel with a side height of 50 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Small duct Obo Bettermann AZK 100 FT provides a streamlined routing solution for organizing and safeguarding smaller bundles of electrical conductors in wiring layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 4,4695 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 50x100x3000
- Dimension: 100 x 50 x 1,5
- Height: 50 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- NATO hole pattern: no
- Plate thickness: 1,5 mm
- Rustproof steel, pickled: no
- Side perforation: yes
- Support spacing 1.0 m: 1,7 kN/m
- Support spacing 1.5 m: 1,5 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 4,4695 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 50x100x3000 |
| Dimension | 100 x 50 x 1,5 |
| Height | 50 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
|---|---|
| Side perforation | yes |
| Support spacing 1.0 m | 1,7 kN/m |
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,8 kN/m |
| Support spacing 3.0 m | 0,25 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 5000 mm² |
| Usable cross-section | 50 cm² |
| Wide-span version | no |
| Width | 100 mm |
