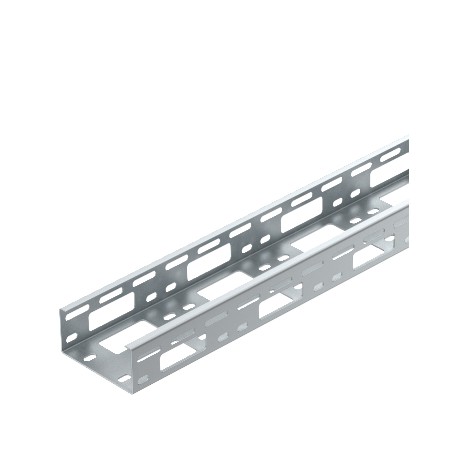

OBO BETTERMANN AZK 100 FS AZK 100 FS 6075231 OBO BETTERMANN AZ small duct perforated, 50x100x3000, Strip-galvanised, DIN EN 10147, Ste.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AZK 100 FS 6075231 OBO BETTERMANN AZ small duct perforated, 50x100x3000, Strip-galvanised, DIN EN 10147, Ste..

AZK 100 FS

6075231

OBO BETTERMANN

3 m.

AZ small duct perforated, 50x100x3000, Strip-galvanised, DIN EN 10147, Steel, St AZ small duct 100 FS. AZ channel with a side height of 50 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A small duct perforated system from Obo Bettermann, cataloged as AZK 100 FS, provides streamlined routing and mechanical protection for smaller electrical cable runs in industrial buildings. Perforated cable ducts facilitate airflow and simplify cable fastening during installation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 5,5552 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Without connectors
  • Dimension: 50x100x3000
  • Dimension: 100 x 50 x 1,5
  • Height: 50 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes
  • NATO hole pattern: no
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: yes
  • Support spacing 1.0 m: 1,7 kN/m
  • Support spacing 1.5 m: 1,5 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate5,5552 kg CO2e / 1 Meter
Colourzinc
Connector versionWithout connectors
Dimension50x100x3000
Dimension100 x 50 x 1,5
Height50 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationyes
Support spacing 1.0 m1,7 kN/m
Support spacing 1.5 m1,5 kN/m
Support spacing 2.0 m1 kN/m
Support spacing 2.5 m0,8 kN/m
Support spacing 3.0 m0,25 kN/m
SurfaceStrip galvanized
Usable cross-section50 cm²
Usable cross-section5000 mm²
Wide-span versionno
Width100 mm
