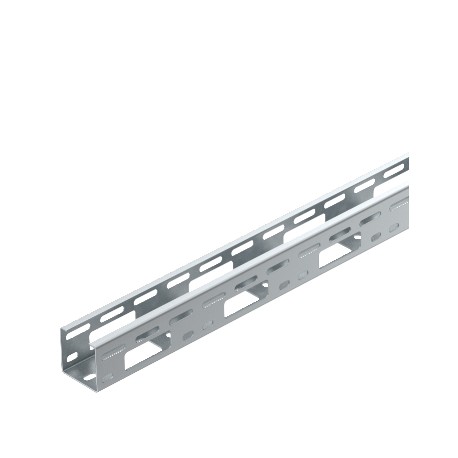

OBO BETTERMANN AZK 050 FT AZK 050 FT 6075142 OBO BETTERMANN AZ small duct perforated, 50x50x3000, Hot-dip galvanised, DIN EN ISO 1461,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AZK 050 FT 6075142 OBO BETTERMANN AZ small duct perforated, 50x50x3000, Hot-dip galvanised, DIN EN ISO 1461,..

AZK 050 FT

6075142

OBO BETTERMANN

3 m.

AZ small duct perforated, 50x50x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St AZ small duct 50 FT. AZ channel with a side height of 50 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as an efficient routing channel, the Obo Bettermann AZK 050 FT small duct perforated helps organize and protect low-voltage cables in commercial and industrial electrical layouts. Such protective channels maintain structured cable management, preventing physical damage and streamlining maintenance across complex facility networks.

Specific pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 3,9464 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Without connectors
  • Dimension: 50 x 50 x 1,5
  • Dimension: 50x50x3000
  • Height: 50 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes
  • NATO hole pattern: no
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: yes
  • Support spacing 1.0 m: 2,5 kN/m
  • Support spacing 1.5 m: 2 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate3,9464 kg CO2e / 1 Meter
Colourzinc
Connector versionWithout connectors
Dimension50 x 50 x 1,5
Dimension50x50x3000
Height50 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationyes
Support spacing 1.0 m2,5 kN/m
Support spacing 1.5 m2 kN/m
Support spacing 2.0 m1,2 kN/m
Support spacing 2.5 m0,85 kN/m
Support spacing 3.0 m0,5 kN/m
SurfaceHot-dip galvanised
Usable cross-section2500 mm²
Usable cross-section25 cm²
Wide-span versionno
Width50 mm
