View larger
Images are for illustrative purposes only. Please refer to data sheet for details

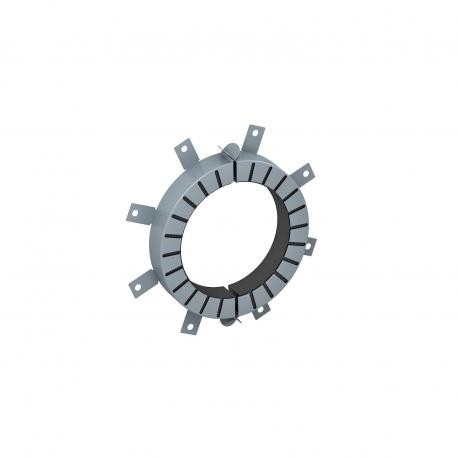

TCX-180 7202212 OBO BETTERMANN Pipe sleeve for combustible pipes, 264x40, Grey, Intumescent material
TCX-180
7202212
OBO BETTERMANN
1 Pcs.
Pipe sleeve for combustible pipes, 264x40, Grey, Intumescent material
Pipe sleeve with 8 fastening straps. Pipe sleeve for combustible pipes.If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M8 threaded rods.
Automation > Fire partitioning
Isolation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Accessories required | yes |
|---|---|
| Colour | Grey |
| Dimension | Ø180mm |
| Dimension d | 184 mm |
| Dimension d min. | 264 mm |
| Dimension h | 40 mm |
| For pipe diameter, max. | 182 mm |
|---|---|
| For pipe diameter, min. | 180 mm |
| Height | 40 mm |
| Length | 264 mm |
| Material | Intumescent material |
| Width | 264 mm |
