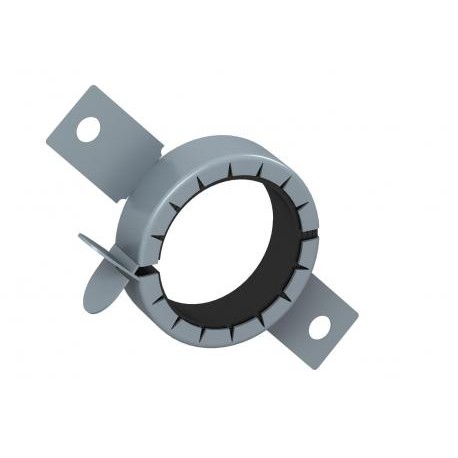

OBO BETTERMANN TCX-050 TCX-050 7202203 OBO BETTERMANN Pipe sleeve for combustible pipes, 68x26, Grey, Intumescent material View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TCX-050 7202203 OBO BETTERMANN Pipe sleeve for combustible pipes, 68x26, Grey, Intumescent material

TCX-050

7202203

OBO BETTERMANN

1 Pcs.

Pipe sleeve for combustible pipes, 68x26, Grey, Intumescent material Pipe sleeve with 2 fastening straps. Pipe sleeve for combustible pipes.If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M6 threaded rods.

Automation > Fire partitioning
Isolation

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protecting smaller utility runs, the Obo Bettermann TCX-050 pipe sleeve for combustible pipes acts as a critical firestopping measure where plastic piping traverses fire-rated partitions. Intumescent elements activate automatically during a fire event to choke off plastic pipes and prevent flame spread. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessories required: yes
  • Colour: Grey
  • Dimension: Ø50mm
  • Dimension d: 54 mm
  • Dimension d min.: 68 mm
  • Dimension h: 26 mm
  • For pipe diameter, max.: 52 mm
  • For pipe diameter, min.: 50 mm
  • Height: 26 mm
  • Length: 68 mm
  • Material: Intumescent material
  • Width: 68 mm

More info

▲
Accessories requiredyes
ColourGrey
DimensionØ50mm
Dimension d54 mm
Dimension d min.68 mm
Dimension h26 mm
For pipe diameter, max.52 mm
For pipe diameter, min.50 mm
Height26 mm
Length68 mm
MaterialIntumescent material
Width68 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
