View larger
Images are for illustrative purposes only. Please refer to data sheet for details

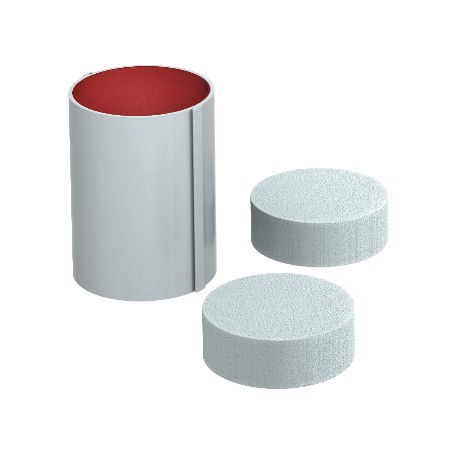

CTS-150 7204300 OBO BETTERMANN Pipe shell internally coated, Ø107x150, Grey, Polyvinylchloride, PVC
CTS 12150
7204300
OBO BETTERMANN
1 Pcs.
Pipe shell internally coated, Ø107x150, Grey, Polyvinylchloride, PVC
PYROCOMB® Intube pipe shell, Ø 120 mm. Internally coated pipe shells with click lock. The inner space can be fitted with cables and electrical installation pipes completely. For interior application. CE-labelled, European approved construction product according to ETA-13/0904 and German general type approval. Fire resistance up to 120 minutes.Closing with 2 foam plugs included in the delivery. The surface seal is created with PYROCOAT® ASX coating.In some applications, the use of metallic tightening straps is prescribed to secure the pipe shells in light-duty partitions. Details can be found in the mounting instructions/approval.
Automation > Fire partitioning
Isolation
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Accessories required | no |
|---|---|
| Colour | Grey |
| Diameter | 116,4 mm |
| Dimension | Ø107x150mm |
| Dimension B | 116,4 mm |
| Dimension d min. | 107 mm |
| Dimension L | 150 mm |
| Fire protection version | Assembly insulation |
|---|---|
| For opening, max. | 165 mm |
| For opening, min. | 125 mm |
| Length | 150 mm |
| Material | Polyvinylchloride |
| Shape | Round |
