View larger
Images are for illustrative purposes only. Please refer to data sheet for details

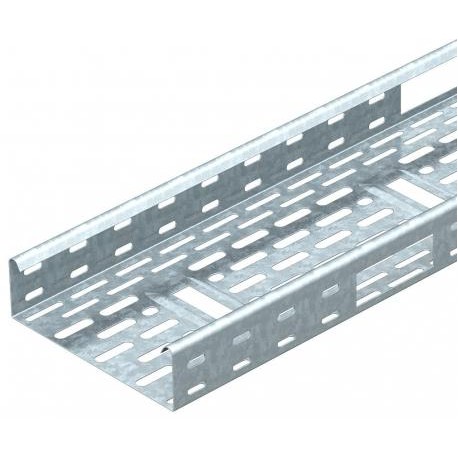

IKS 610 FS 6087116 OBO BETTERMANN CABLE TRAY IKS IKS 610 FS
IKS 610 FS
6087116
OBO BETTERMANN
3 m.
CABLE TRAY IKS IKS 610 FS
IKS energy tray, w/wing pitch nozzle, 60x100x3000, galvanized steel in band, DIN EN 10346
Cable tray IKS 60 FS. IKS 60 = installation cable tray system with 60 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 4,3254 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x100x3000 |
| Dimension | 60 x 100 |
| Dimension B | 100 mm |
| Height | 2 in |
| Height | 60 mm |
| Length | 10 ft |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Plate thickness | 0,04 in |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.0 m | 0,9 kN/m |
| Support spacing 1.5 m | 0,9 kN/m |
| Support spacing 2.0 m | 0,7 kN/m |
| Support spacing 2.5 m | 0,45 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 58 cm² |
| Usable cross-section | 5800 mm² |
| Wide-span version | no |
| Width | 100 mm |
| Width | 4 in |
| With cover | no |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 100 mm |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 5800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 1.55 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1 m |
| Safe working load according to IEC 61537 with support spacing 1.0 m (EF017263) | 900 |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 900 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 700 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 450 |
