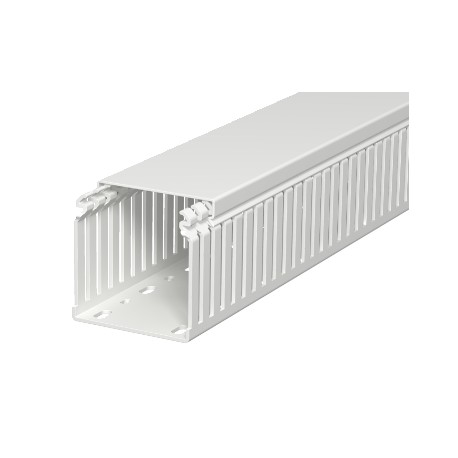

LKVH N 75075 6178559 OBO BETTERMANN Slotted cable trunking system halogen-free, 75x75x2000, Light grey, 7035..
LKVH N 75075
6178559
OBO BETTERMANN
16 m.
Slotted cable trunking system halogen-free, 75x75x2000, Light grey, 7035, Polycarbonate/Acrylnitrile-butadiene-styrene, PC/ABS
Wiring trunking, type LKVH N 75075. Halogen-free wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tapering in the side slots prevents the cables from falling out. Tested to DIN EN 50085-2-3. Special lengths on request.
Cables > Slotted cable trunking system
Halogen-Free Channel
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 4,6423 kg CO2e / 1 Meter |
|---|---|
| Colour | Light grey; RAL 7035 |
| Creepage current-resistant | yes |
| Dimension | 75x75x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | yes |
| Height | 75 mm |
| Length | 2000 mm |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Permitted temperature range, max. | 90 °C |
|---|---|
| Permitted temperature range, min. | -25 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Usable cross-section | 47,95 cm² |
| Width | 75 mm |
| With cover | yes |
