MTS-VGA S AL1 6104628 OBO BETTERMANN Multimedia support, VGA socket with screw connection, 45x45mm, Aluminiu..
MTS-VGA S AL1
6104628
OBO BETTERMANN
1 Pcs.
Automation > Insert/cover for communication technology
Systems mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

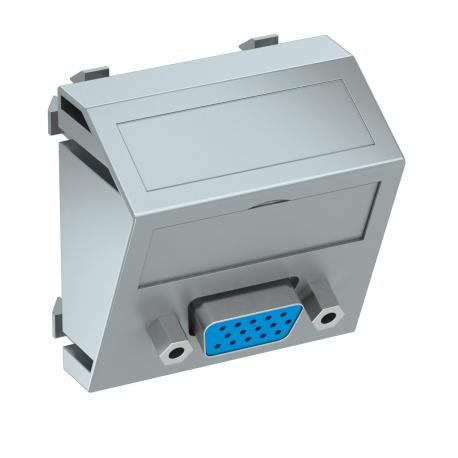

Designed for display connectivity, the Obo Bettermann MTS-VGA S AL1 multimedia support features a screw connection VGA socket interface. These modules are widely implemented in lecture halls, corporate boardrooms, and control desks to facilitate dependable monitor signal extensions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,08 kg CO2e / 1 Piece
- Colour: Aluminium painted
- Combination: Basic element with central cover plate
- Depth: 26 mm
- Dimension: 45x45mm
- Fastening type: Lock
- Halogen-free: yes
- Height: 45 mm
- Hinged cover: no
- Labelling panel: With labelling panel
- Lamp-wire connector: no
- Material: Polycarbonate
- Number of units: 1
- Protection rating: IP20
- Strain relief option: no
- Support ring: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,08 kg CO2e / 1 Piece |
|---|---|
| Colour | Aluminium painted |
| Combination | Basic element with central cover plate |
| Depth | 26 mm |
| Dimension | 45x45mm |
| Fastening type | Lock |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| Labelling panel | With labelling panel |
| Lamp-wire connector | no |
| Material | Polycarbonate |
|---|---|
| Number of units | 1 |
| Protection rating | IP20 |
| Strain relief option | no |
| Support ring | no |
| Surface version | Matt |
| Transparent | no |
| Use | VGA |
| Width | 45 mm |
| With dust protection | no |
| With printed label | no |
