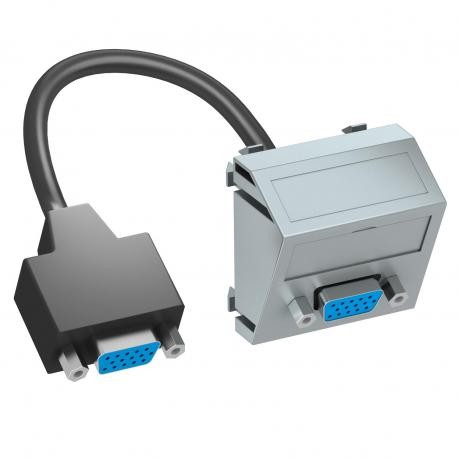

MTS-VGA F AL1 6104676 OBO BETTERMANN Multimedia support, VGA with cable, socket-socket, 45x45mm, Aluminium p..
MTS-VGA F AL1
6104676
OBO BETTERMANN
1 Pcs.
Automation > Insert/cover for communication technology
Systems mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann MTS-VGA F AL1 multimedia support provides an integrated VGA cable and socket connection for efficient display signal transmission. Such assemblies are widely installed in commercial AV environments, meeting rooms, and educational desks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0916 kg CO2e / 1 Piece
- Colour: Aluminium painted
- Combination: Basic element with central cover plate
- Depth: 26 mm
- Dimension: 45x45mm
- Fastening type: Lock
- Halogen-free: yes
- Height: 45 mm
- Hinged cover: no
- Labelling panel: With labelling panel
- Lamp-wire connector: no
- Material: Polycarbonate
- Number of units: 1
- Protection rating: IP20
- Strain relief option: no
- Support ring: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0916 kg CO2e / 1 Piece |
|---|---|
| Colour | Aluminium painted |
| Combination | Basic element with central cover plate |
| Depth | 26 mm |
| Dimension | 45x45mm |
| Fastening type | Lock |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| Labelling panel | With labelling panel |
| Lamp-wire connector | no |
| Material | Polycarbonate |
|---|---|
| Number of units | 1 |
| Protection rating | IP20 |
| Strain relief option | no |
| Support ring | no |
| Surface version | Matt |
| Transparent | no |
| Use | VGA |
| Width | 45 mm |
| With dust protection | no |
| With printed label | no |
