OBO BETTERMANN MTS-R F RW1 MTS-R F RW1 6105006 OBO BETTERMANN Multimedia support video cinch 1x coupling, socket-socket, 45x45mm, Pure ..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

MTS-R F RW1 6105006 OBO BETTERMANN Multimedia support video cinch 1x coupling, socket-socket, 45x45mm, Pure ..

Name: MTS-R F RW1 6105006 OBO BETTERMANN Multimedia support video cinch 1x coupling, socket-socket, 45x45mm, Pure ..
Brand: OBO BETTERMANN
SKU: 6105006

Reference: MTS-R F RW1

Code: 6105006

Manufacturer: OBO BETTERMANN

Units per package: 1 Pcs.

Description:

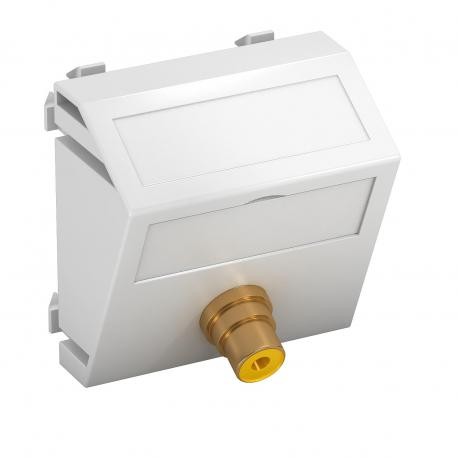

Multimedia support video cinch 1x coupling, socket-socket, 45x45mm, Pure white, 9010, Polycarbonate, PC Video cinch connection, 1 module, slanting outlet, as 1:1 coupling, pure white. Multimedia support with one cinch connection socket for composite video, slanting cable outlet, with labelling panel, cinch coupling (RCA), socket-socket version, colour coding yellow. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Categories:
Automation > Insert/cover for communication technology
Systems mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann multimedia support video cinch 1x coupling, socket-socket (MTS-R F RW1) is an interface component designed to route and connect video signal lines seamlessly through wall plates and modular installation systems in AV environments. It provides a standardized receptacle for patching coaxial video feeds in professional presentation setups and institutional venues. Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

CO2 Footprint (GWP) Cradle-to-Gate: 0,249 kg CO2e / 1 Piece
Colour: Pure white
RAL: 9010
Combination: Basic element with central cover plate
Depth: 26 mm
Dimension: 45x45mm
Fastening type: Lock
Halogen-free: yes
Height: 45 mm
Hinged cover: no
Lamp-wire connector: no
Material: Polycarbonate
Number of units: 1
Protection rating: IP20
Strain relief option: no
Support ring: no
Surface version: Matt

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	0,249 kg CO2e / 1 Piece
Colour	Pure white; RAL 9010
Combination	Basic element with central cover plate
Depth	26 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Lamp-wire connector	no
Material	Polycarbonate

Number of units	1
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	Cinch
Width	45 mm
With dust protection	no
With printed label	no
