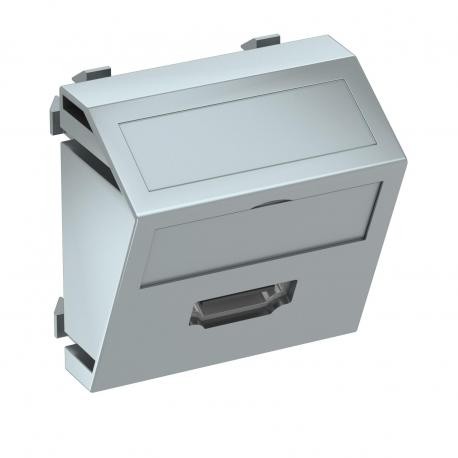

OBO BETTERMANN MTS-HD S AL1 MTS-HD S AL1 6104820 OBO BETTERMANN Multimedia support, HDMI socket with screw connection, 45x45mm, Aluminiu..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

MTS-HD S AL1 6104820 OBO BETTERMANN Multimedia support, HDMI socket with screw connection, 45x45mm, Aluminiu..

Name: MTS-HD S AL1 6104820 OBO BETTERMANN Multimedia support, HDMI socket with screw connection, 45x45mm, Aluminiu..
Brand: OBO BETTERMANN
SKU: 6104820

Reference: MTS-HD S AL1

Code: 6104820

Manufacturer: OBO BETTERMANN

Units per package: 1 Pcs.

Description:

Multimedia support, HDMI socket with screw connection, 45x45mm, Aluminium painted, Polycarbonate, PC HDMI connection, 1 module, slanting outlet, as screw connection. Multimedia support with one HDMI connection socket, slanting cable outlet, with labelling panel, HDMI socket with screw connection. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Categories:
Automation > Insert/cover for communication technology
Systems mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A multimedia support, HDMI socket with screw connection (MTS-HD S AL1) produced by Obo Bettermann provides a rugged, secure termination point for high-definition digital video links inside standard raceways and wall boxes. It enables reliable hookups for monitors, projectors, and media players in corporate boardrooms and classrooms. Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

CO2 Footprint (GWP) Cradle-to-Gate: 0,3699 kg CO2e / 1 Piece
Colour: Aluminium painted
Combination: Basic element with central cover plate
Depth: 26 mm
Dimension: 45x45mm
Fastening type: Lock
Halogen-free: yes
Height: 45 mm
Hinged cover: no
Labelling panel: With labelling panel
Lamp-wire connector: no
Material: Polycarbonate
Number of units: 1
Protection rating: IP20
Strain relief option: no
Support ring: no

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	0,3699 kg CO2e / 1 Piece
Colour	Aluminium painted
Combination	Basic element with central cover plate
Depth	26 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Labelling panel	With labelling panel
Lamp-wire connector	no

Material	Polycarbonate
Number of units	1
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	HDMI
Width	45 mm
With dust protection	no
With printed label	no
