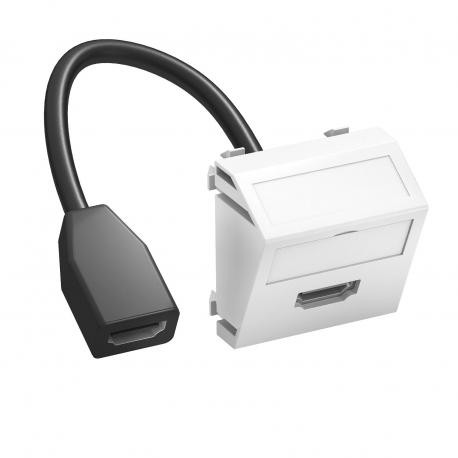

MTS-HD F RW1 6104838 OBO BETTERMANN Multimedia support, HDMI with cable, socket-socket, 45x45mm, Pure white,..
MTS-HD F RW1
6104838
OBO BETTERMANN
1 Pcs.
Automation > Insert/cover for communication technology
Systems mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann multimedia support, HDMI with cable, socket-socket, 45x45mm, Pure white,.. (MTS-HD F RW1) provides high-definition audio and video signal pass-through for modern media distribution systems. This pre-assembled insert ensures reliable interconnectivity inside standard electrical raceways and media boxes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,3928 kg CO2e / 1 Piece
- Colour: Pure white
- RAL: 9010
- Combination: Basic element with central cover plate
- Depth: 26 mm
- Dimension: 45x45mm
- Fastening type: Lock
- Halogen-free: yes
- Height: 45 mm
- Hinged cover: no
- Labelling panel: With labelling panel
- Lamp-wire connector: no
- Material: Polycarbonate
- Number of units: 1
- Protection rating: IP20
- Strain relief option: no
- Support ring: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,3928 kg CO2e / 1 Piece |
|---|---|
| Colour | Pure white; RAL 9010 |
| Combination | Basic element with central cover plate |
| Depth | 26 mm |
| Dimension | 45x45mm |
| Fastening type | Lock |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| Labelling panel | With labelling panel |
| Lamp-wire connector | no |
| Material | Polycarbonate |
|---|---|
| Number of units | 1 |
| Protection rating | IP20 |
| Strain relief option | no |
| Support ring | no |
| Surface version | Matt |
| Transparent | no |
| Use | HDMI |
| Width | 45 mm |
| With dust protection | no |
| With printed label | no |
