View larger
Images are for illustrative purposes only. Please refer to data sheet for details

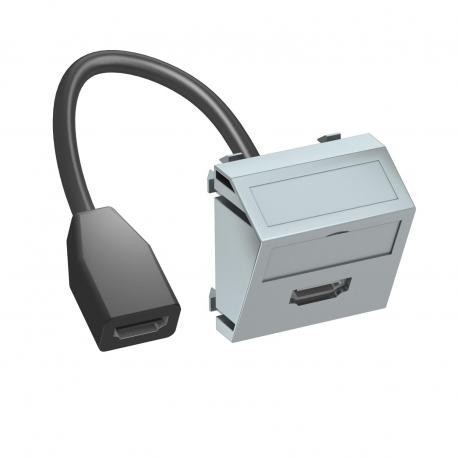

MTS-HD F AL1 6104844 OBO BETTERMANN Multimedia support, HDMI with cable, socket-socket, 45x45mm, Aluminium p..
MTS-HD F AL1
6104844
OBO BETTERMANN
1 Pcs.
Multimedia support, HDMI with cable, socket-socket, 45x45mm, Aluminium painted, Polycarbonate, PC
Multimedia socket, HDMI MTS-HD F AL1, with connection cable 45x45mm Polycarbonate, PC,
HDMI connection, 1 module, slanting outlet, with connection cable. Multimedia support with one HDMI connection socket, slanting cable outlet, with labelling panel, short HDMI connection cable, socket-socket version. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Automation > Insert/cover for communication technology
Systems mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,228 kg CO2e / 1 Piece |
|---|---|
| Colour | Aluminium painted |
| Combination | Basic element with central cover plate |
| Depth | 26 mm |
| Dimension | 45x45mm |
| Fastening type | Lock |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| Labelling panel | With labelling panel |
| Lamp-wire connector | no |
| Material | Polycarbonate |
|---|---|
| Number of units | 1 |
| Protection rating | IP20 |
| Strain relief option | no |
| Support ring | no |
| Surface version | Matt |
| Transparent | no |
| Use | HDMI |
| Width | 45 mm |
| With dust protection | no |
| With printed label | no |
