View larger

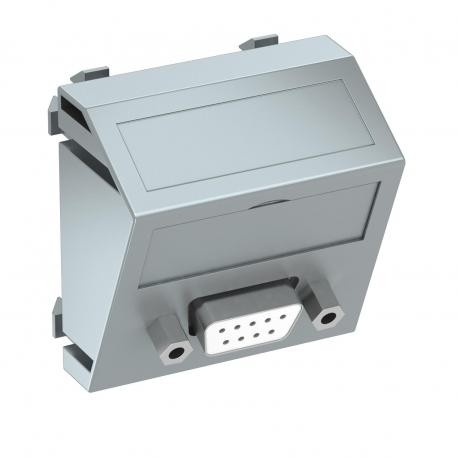

Images are for illustrative purposes only. Please refer to data sheet for details
MTS-DB9 S AL1 6104652 OBO BETTERMANN Multimedia support, D-Sub9 socket with screw connection, 45x45mm, Alumi..
MTS-DB9 S AL1
6104652
OBO BETTERMANN
1 Pcs.
Multimedia support, D-Sub9 socket with screw connection, 45x45mm, Aluminium painted, Polycarbonate, PC
D-Sub9 connection, 1 module, slanting outlet, as screw connection. Multimedia support with one D-Sub9 connection socket, slanting cable outlet, with labelling panel, D-Sub9 socket (RS232) with screw connection. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Automation > Insert/cover for communication technology
Systems mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,08 kg CO2e / 1 Piece |
|---|---|
| Colour | Aluminium painted |
| Combination | Basic element with central cover plate |
| Depth | 26 mm |
| Dimension | 45x45mm |
| Fastening type | Lock |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| Labelling panel | With labelling panel |
| Lamp-wire connector | no |
| Material | Polycarbonate |
|---|---|
| Number of units | 1 |
| Protection rating | IP20 |
| Strain relief option | no |
| Support ring | no |
| Surface version | Matt |
| Transparent | no |
| Use | D-Sub miniature |
| Width | 45 mm |
| With dust protection | no |
| With printed label | no |
