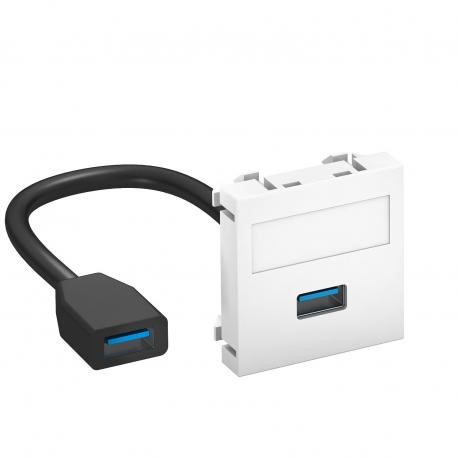

OBO BETTERMANN MTG-U3A F RW1 MTG-U3A F RW1 6104922 OBO BETTERMANN Multimedia support,USB 3.0 A-A with cable, socket-socket, 45x45mm, Pure.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MTG-U3A F RW1 6104922 OBO BETTERMANN Multimedia support,USB 3.0 A-A with cable, socket-socket, 45x45mm, Pure..

MTG-U3A F RW1

6104922

OBO BETTERMANN

1 Pcs.

Multimedia support,USB 3.0 A-A with cable, socket-socket, 45x45mm, Pure white, 9010, Polycarbonate, PC USB 2.0/3.0 connection, 1 module, straight outlet, with connection cable. Multimedia support with one USB 3.0 connection socket, straight cable outlet, with labelling panel, short USB 3.0 type A connection cable, socket-socket version. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Automation > Insert/cover for communication technology
Systems mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann Multimedia support,USB 3.0 A-A with cable, socket-socket, 45x45mm, Pure.. (MTG-U3A F RW1) delivers a convenient feed-through link for connecting USB-enabled equipment through building installation channels. Professionals utilize these pre-assembled units to simplify data port deployment in office desks, lecterns, and wall raceways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,276 kg CO2e / 1 Piece
  • Colour: Pure white
  • RAL 9010:
  • Combination: Basic element with central cover plate
  • Depth: 9 mm
  • Dimension: 45x45mm
  • Fastening type: Lock
  • Halogen-free: yes
  • Height: 45 mm
  • Hinged cover: no
  • Labelling panel: With labelling panel
  • Lamp-wire connector: no
  • Material: Polycarbonate
  • Number of units: 1
  • Protection rating: IP20
  • Strain relief option: no
  • Support ring: no

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,276 kg CO2e / 1 Piece
ColourPure white; RAL 9010
CombinationBasic element with central cover plate
Depth9 mm
Dimension45x45mm
Fastening typeLock
Halogen-freeyes
Height45 mm
Hinged coverno
Labelling panelWith labelling panel
Lamp-wire connectorno
MaterialPolycarbonate
Number of units1
Protection ratingIP20
Strain relief optionno
Support ringno
Surface versionMatt
Transparentno
UseUSB
Width45 mm
With dust protectionno
With printed labelyes
