View larger
Images are for illustrative purposes only. Please refer to data sheet for details

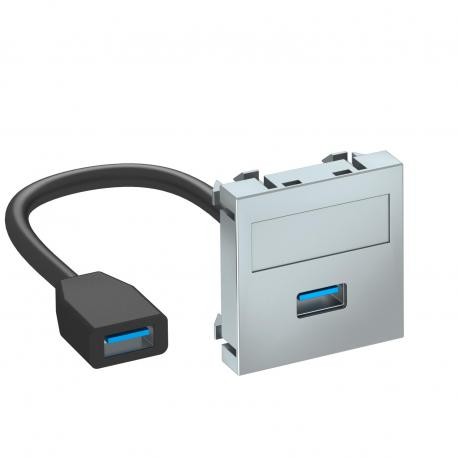

MTG-U3A F AL1 6104928 OBO BETTERMANN Multimedia support,USB 3.0 A-A with cable, socket-socket, 45x45mm, Alum..
MTG-U3A F AL1
6104928
OBO BETTERMANN
1 Pcs.
Multimedia support,USB 3.0 A-A with cable, socket-socket, 45x45mm, Aluminium painted, Polycarbonate, PC
Multimedia socket, USB 3.0 A-A MTG-U3A F AL1, with connection cable 45x45mm Polycarbonate, PC,
USB 2.0/3.0 connection, 1 module, straight outlet, with connection cable. Multimedia support with one USB 3.0 connection socket, straight cable outlet, with labelling panel, short USB 3.0 type A connection cable, socket-socket version. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Automation > Insert/cover for communication technology
Systems mechanisms
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,258 kg CO2e / 1 Piece |
|---|---|
| Colour | Aluminium painted |
| Combination | Basic element with central cover plate |
| Depth | 9 mm |
| Dimension | 45x45mm |
| Fastening type | Lock |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| Labelling panel | With labelling panel |
| Lamp-wire connector | no |
| Material | Polycarbonate |
|---|---|
| Protection rating | IP20 |
| Strain relief option | no |
| Support ring | no |
| Surface version | Matt |
| Transparent | no |
| Use | USB |
| Width | 45 mm |
| With dust protection | no |
| With printed label | yes |
