OBO BETTERMANN MTG-HD F RW1 MTG-HD F RW1 6104826 OBO BETTERMANN Multimedia support, HDMI with cable, socket-socket, 45x45mm, Pure white,..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

MTG-HD F RW1 6104826 OBO BETTERMANN Multimedia support, HDMI with cable, socket-socket, 45x45mm, Pure white,..

Name: MTG-HD F RW1 6104826 OBO BETTERMANN Multimedia support, HDMI with cable, socket-socket, 45x45mm, Pure white,..
Brand: OBO BETTERMANN
SKU: 6104826

Reference: MTG-HD F RW1

Code: 6104826

Manufacturer: OBO BETTERMANN

Units per package: 1 Pcs.

Description:

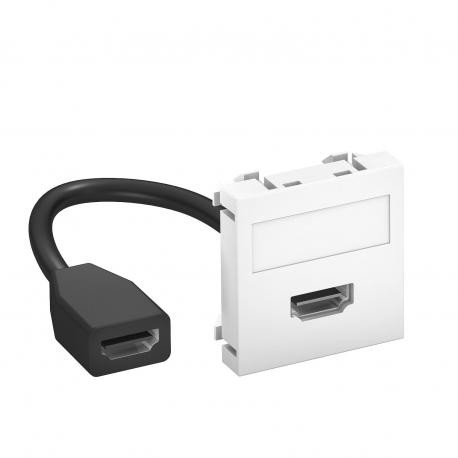

Multimedia support, HDMI with cable, socket-socket, 45x45mm, Pure white, 9010, Polycarbonate, PC HDMI connection, 1 module, straight outlet, with connection cable. Multimedia support with one HDMI connection socket, straight cable outlet, with labelling panel, short HDMI connection cable, socket-socket version. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Categories:
Automation > Insert/cover for communication technology
Systems mechanisms

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann multimedia support, HDMI with cable (MTG-HD F RW1) facilitates high-definition digital video and audio signal transmission by providing a reliable wall-mounted pass-through connection for modern display systems and media controllers. These inserts are widely deployed in conference rooms, educational facilities, and broadcast installations to streamline peripheral hookups. Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

CO2 Footprint (GWP) Cradle-to-Gate: 0,278 kg CO2e / 1 Piece
Colour: Pure white
RAL: 9010
Combination: Basic element with central cover plate
Depth: 9 mm
Dimension: 45x45mm
Fastening type: Lock
Halogen-free: yes
Height: 45 mm
Hinged cover: no
Labelling panel: With labelling panel
Lamp-wire connector: no
Material: Polycarbonate
Number of units: 1
Protection rating: IP20
Strain relief option: no
Support ring: no

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	0,278 kg CO2e / 1 Piece
Colour	Pure white; RAL 9010
Combination	Basic element with central cover plate
Depth	9 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Labelling panel	With labelling panel
Lamp-wire connector	no

Material	Polycarbonate
Number of units	1
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	HDMI
Width	45 mm
With dust protection	no
With printed label	no
